Pulsatron

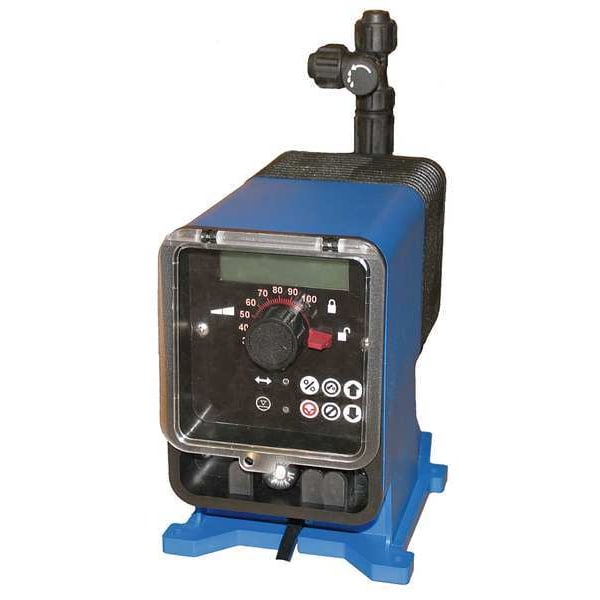

Metering Pump, 1000 CPS115V, 6 ft.Ceramic

product price: $2,006.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Chemical Metering Pump Type Diaphragm
  • Flow Rate Output Control Adjustable
  • Voltage 115
  • Max. Flow (gpd) - Pumps 240.00 gpd
  • Diaphragm Material CSPE, PTFE
See all product information

Product Information

Dimensions

Height 11 3/4 in
Length 11 1/4 in
Width 6 1/4 in
Cord Length 6 ft
Overall Height 11.7 in
Overall Width 6.1 in
Overall Length 11.2 in
Intake Connection Size 1/2 in
Discharge Connection Size 1/2 in

Details

Chemical Metering Pump Type Diaphragm
Flow Rate Output Control Adjustable
Voltage 115
Max. Flow (gpd) - Pumps 240.00 gpd
Diaphragm Material CSPE, PTFE
Max. Pressure - Pumps 35 psi
Voltage - Pumps 115V AC
Phase - Pumps 1
Max. Viscosity - Pumps 1,000 cps
HP - Pumps 1/5 hp
Turn Down Ratio - Pumps 1000:1
Reproducibility - Pumps +/-2.0%
Self-Priming Yes
Pump Type Diaphragm
Reproducibility +/-2.0%
Head and Fitting Material GFPPL
Turn Down Ratio 1000:1
Max. Pressure 35 psi
Tubing Material PVC/Polyethylene
Max. Strokes per Minute 125 stroke/min
Max. Flow Rate 240 gpd
Standards CE Certified, ETL, ETL Sanitation, NSF 61 Certified
Hz 50/60
Item - Chemical Metering Pumps Chemical Metering Pump
Phase Single
Seals and O-Rings PTFE
Head and Fitting Material - Pumps GFPPL
Body Material Chemical Resistant Resin
Max. Viscosity 1000 cps
cc/Min. 630 cc/min
Body Material - Pumps Resin
Min. Flow Rate 0.24 gpd
Item Chemical Metering Pump
Suction Lift 4 ft
Features 4-20mA Input, MicroProcessor Control, Solenoid Drive
Ball Material - Pumps Ceramic
Includes Bleed Valve, Foot Valve/Strainer, Injection Back Pressure Valve, Tube
Ball Material Ceramic
Seals and O-Rings - Pumps PTFE
Number of Feeds 1
Housing Material Resin
Media Temperature (Maximum) 104 Degrees F
Priming Self-Priming
Fitting Material Glass-Filled Polypropylene
Head Material Glass-Filled Polypropylene
Degassing Valve Included No
Duty Cycle Continuous
Nameplate Voltage 115/230V AC
Motor Thermal Protection Auto
Check Ball Material Ceramic
Flow Rate (Maximum) 240 gpd
Frequency 60 Hz
Operating Pressure (Maximum) 35 psi
Seal Material PTFE
Stroke Rate (Maximum) 125 stroke/min
Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Water
Flow Rate (Minimum) 0.24 gpd
Intake Connection Type Tube
Control Programs 4-20 mA Input
Horsepower (Maximum) 1/5 hp
Discharge Connection Type Tube
Viscosity (Maximum) 1,000 cps
Pump Drive Type Solenoid

Description

Chemical Metering Pump, Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10 Percent, Hydrochloric Acid 20 Percent, Hydrochloric Acid 30 Percent, Hydrochloric Acid 40 Percent, Phosphoric Acid 40 Percent, Potassium Hydroxide 50 Percent, Sodium Hydroxide 20 Percent, Sodium Hydroxide 50 Percent, Sodium Hydroxide 80 Percent, Sulfuric Acid 10 Percent, Water, Control Programs 4-20 mA Input, Diaphragm Material CSPE, PTFE, Discharge Connection Size 1/2 in
