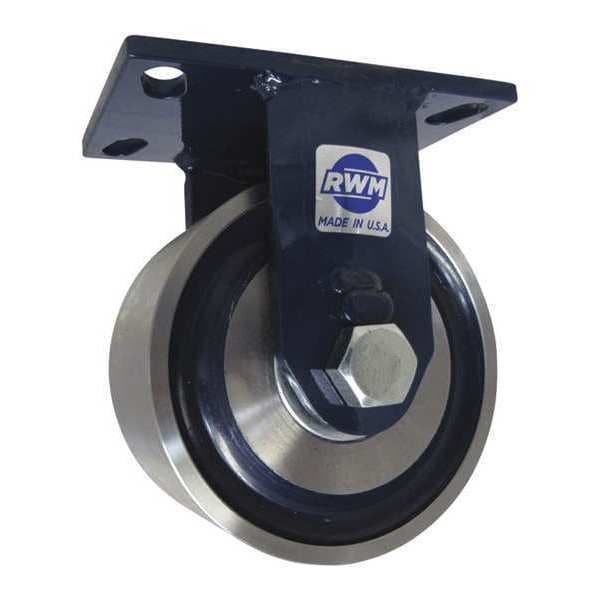

Rigid Plate Caster, Forged Steel, 6000 lb.

product price: $271.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Extra Super Duty
  • Caster Product Group Rigid Caster
  • Load Rating 6000 lb
  • Caster Wheel Shape Standard
See all product information

Product Information

  • Brand Rwm
  • MFR # 75-FSR-0630-R
  • Zoro # G6675541
  • Country of Origin United States
  • Category Plate Casters

Dimensions

Wheel Dia. 6 in
Wheel Width 3 in
Overall Height 7-1/2"
Mounting Height 7 1/2 in
Mounting Plate Size 4 1/2 in x 6 1/2 in
Mounting Bolt Dia. 1/2 in
Plate Size 4-1/2" x 6-1/2"
Caster Plate Size 4-1/2" x 6-1/2"

Details

Item Kingpinless Plate Caster
Caster Brake Included No
Caster Sub-Type Rigid
Caster Load Rating Range Extra Super Duty
Caster Product Group Rigid Caster
Load Rating 6000 lb
Caster Wheel Shape Standard
Caster Wheel/Tread Material Forged Steel
Wheel/Tread Material Steel
Wheel/Tread Hardness Rating Extra Hard
Wheel Bearing Type Roller
Mounting Plate Bolt Hole Pattern A
Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Blue Powder Coat
Caster Frame Material Steel
Wheel Core Material Steel
Core Color Blue
Application Tow Lines, Shock Load Applications and Abusive Conditions in Ship Building, Automotive, Metal Fabricating, and Air Cargo Support Equipment
Features Kingpinless Raceway
Standards ICWM, ISO 9001:2015
Includes Complete Caster
Caster Core Material Steel
Thread Guards No
Plate Thickness 5/16"
Plate Caster Bolt Hole Pattern B
Caster Wheel Bearings Roller
Caster Max. Temp. 350 Degrees F
Caster Temp. Range Available Yes
Wheel Color Silver
Caster Temp. Range -50 Degrees to 350 Degrees F
Replacement Wheel Mfr. No. FSR-0630-12
Caster Min. Temp. -50 Degrees F
Extended Lead No
Frame Material Steel
Caster Plate Thickness 5/16"
Caster Raceway Roller
Caster Swivel Lock Type No Lock Included
Caster Plate Hole Pattern B
Includes Thread Guards No
Swivel Raceway Type Roller
Load Rating Range 6000 lb and Greater
Tread Shape Standard
Wheel/Tread Color Silver

Description

Rigid, Kingpinless Plate Caster, Load Rating 6000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
