No Product Image Available

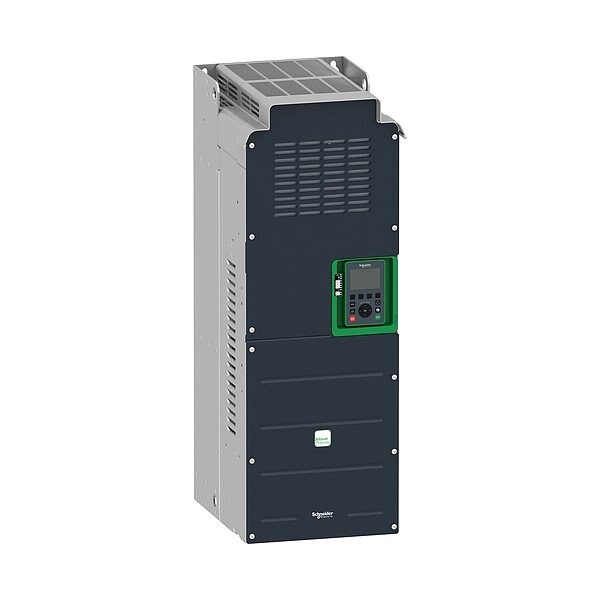

ATV930, Black/Green

  • Mfr # ATV930C13N4CUS

  • Zoro # G822732278

product price:  $24,887.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Input Frequency
60/50 Hz
Number of Inputs - Analog
3
Series
Altivar Process ATV900
Output Voltage
480V AC
Torque Application
Constant Torque, Variable Torque
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
ATV930C13N4CUS
Zoro #
G822732278
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
393 mm
Overall Height
852 mm
Overall Width
320 mm

Details

Input Frequency
60/50 Hz
Number of Inputs - Analog
3
Series
Altivar Process ATV900
Output Voltage
480V AC
Torque Application
Constant Torque, Variable Torque
Communication Protocols Supported
EtherNet/IP, Modbus Serial, Modbus TCP
Output Type
Analog, Digital, Relay
Input Voltage
380-480V AC
Item
ATV930
Control Type
PLC
Accepts External Control Inputs
Yes
IP Rating
IP21
Output Current - Maximum
250 A
Bypass Design
No Bypass
Number of Outputs - Relay
3
Line Contactor Design
With Line Contactor
Product Type
Variable Frequency Drive
Output Horsepower
200 hp
Color
Black/Green
Includes Ethernet Port
Yes
Input Type
Analog, Digital
Adjustable Acceleration Time
0.01 to 9999 sec
Protection
Circuit Breaker, Drive Thermal Overload, Overspeed, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Safe Torque Off, Undervoltage
Dynamic Braking
No
Adjustable Deceleration Time
0.01 to 9999 sec
Standards
CE, CSA, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, TUV, UL, UL 508C
Output Phase
Three
Style
Chassis
Includes EMI Filter
Yes
Output Frequency - Maximum
599 Hz
Start/Stop Control
Programmable
Number of Inputs - Digital
10
Application
Industrial
Number of Outputs - Analog
2
Includes Communication Port
Yes
Includes Brake Chopper
Yes
Input Phase
Three
Output Power - Kilowatt - Maximum
110 kW, 132 kW
Number of Outputs - Digital
2

Description

ATV930, Input Voltage 380-480V AC, Input Frequency 60/50 Hz, Output Voltage 480V AC
