- MFR #
- VLSA11RS
- Zoro #
- G0859203
- UPC #
- -
- Country of Origin
- Korea, Republic of
- Item

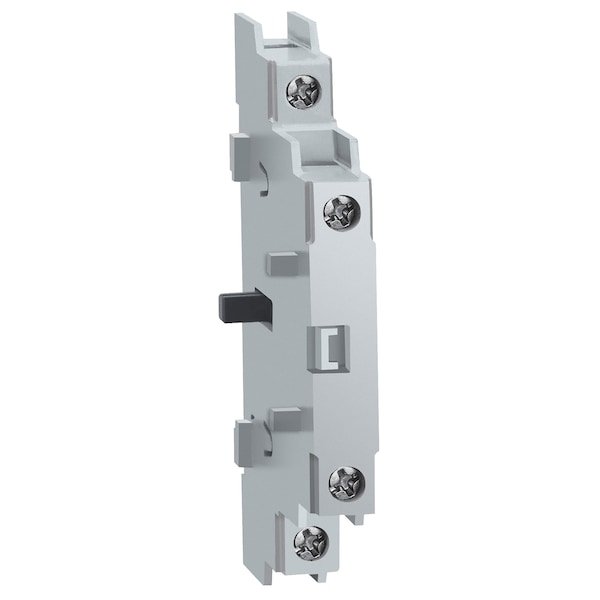

- Auxiliary Contact
- Description/Special Features
- Toxic heavy metal free, Mercury free
- Voltage
- 690V AC
- Includes
- 1 NO + 1 NC
- For Use With
- TeSys VLS Series
- Max. Voltage
- 690V AC
- Standards
- CSA C22.2 No 14, IEC 60947-3, IEC 60947-5, UL 508
- Duty
- Heavy Duty
- Material
- Metal
- Maximum Voltage
- 690V AC
- Mounting Mechanism
- DIN Rail
- Product Type
- Auxiliary Contact Block
- Compatible with Manufacturer Model Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- Current Rating
- 10 A
- Color
- Gray
- Compatible Manufacturer Part Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- Compatible Manufacturer Model Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- For Use With Mfr. Model Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- Mechanical Robustness
- vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Connections - Terminals
- control circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Mounting Location
- right || left
- Range Compatibility
- TeSys (TeSys VARIO LS) VLSA || TeSys (TeSys VARIO LS) VLS3P || TeSys (TeSys VARIO LS) VLS1P
- Device Short Name
- VLSA
- [Ie] Rated Operational Current
- 6 A AC-15)24 V AC || 6 A AC-15)48 V AC || 6 A AC-15)127 V AC || 3 A AC-15)240 V AC || 3 A DC-13)24 V DC || 1.5 A DC-13)48 V DC || 0.55 A DC-13)127 V DC || 0.27 A DC-13)240 V DC
- Contact Operation
- simultaneous 1 NC || simultaneous 1 NO
- Fire Resistance
- 850°C IEC 60695-2-11
- Tightening Torque
- control circuit 0.8-1 N.m screw clamp terminals
- Performance Level
- high performance
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- [Ith] Conventional Free Air Thermal Current
- 10 A 55°C
- Product Or Component Type
- auxiliary contact block
- Network Frequency
- 50/60 Hz
- Minimum Output Voltage
- 5 V
- Contacts Type And Composition
- 1 NC + 1 NO
- Mounting Support
- DIN rail
- Minimum Output Current
- 10 mA
- Network Type
- DC || AC
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Ambient Air Temperature For Operation
- -25-55°C
- Product Certifications
- cULus || GL
- Compatible with Manufacturer Model No.
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- Compatible with Mfr. Model No.
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- For Use with Mfr Model Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- Compatible Pump Manufacturer Part Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- Compatible Mfr. Model Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- For Manufacturer Part Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
- Compatible with Mfr. Model Number
- VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1
