Shop SCHNEIDER ELECTRIC

Buzzer, Buzzer, 240V AC, 90 dB, Plastic, Yellow

  • Mfr # XB5KS2M8

  • Zoro # G3205186

product price:
$
47.55
/ea

Key Features

Housing Material
Plastic
Amps
35 mA
Diameter
0.87 in
Audible Alarm Type
Buzzer
Voltage
240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB5KS2M8
Zoro #
G3205186
UPC #
606481352484
Country of Origin
Indonesia

Dimensions

Diameter
0.87 in
Width
1.14 in
Height
1.14 in
Depth
2.17 in
Overall Depth
2 5/32 in
Overall Diameter
7/8 in
Overall Width
1 1/8 in

Details

Item
Buzzer
Housing Material
Plastic
Amps
35 mA
Color
Yellow
Audible Alarm Type
Buzzer
Voltage
240V AC
Standards
CSA C22.2 No. 14, EN 50102, EN 60947-1, EN 60947-5-1, EN 60947-5-4, IEC 50102, IEC 60529, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Decibels
90 dB
Sound Pattern
continuous or intermittent tone
Current Drawn
35mA
Includes
Screw Clamp Terminals
Flashes per Minute
60
Features
Indicating Bank Buzzer is an Accessory Designed as an Audible and Signaling Unit for Custom Assembly, It has a Continuous or Intermittent Signal and its Sound Acoustic Level is Adjustable
Operating Temp.
-40 Degrees to 158 Degrees F
Power Source
Wire
Housing Color
Black, Green
Lens Color
Yellow
Hazardous Class
II
Rating
IK03, IP66, IP67, IP69, IP69K, NEMA 13, NEMA 4X
Wattage
5 W
Alarm Volume @ 1 m - Maximum
90 dB
Operating Current
0.035 A
IK Rating
IK05
Sound Style
Tone
IP Rating
IP20, IP66, IP67, IP69, IP69K
Operating Temperature - Minimum
-40 Degrees C
Vibration
Vibrating
Operating Temperature - Maximum
70 Degrees C
Sound Continuity
Continuous
Control Protocol
Direct Wire
Connection Type
Screw Terminal
Light Source
LED
Light Operating Mode
Flashing, Steady
NEMA Rating
NEMA 13, NEMA 4X
Mounting Style
Flush Mount
Operating Voltage
240V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

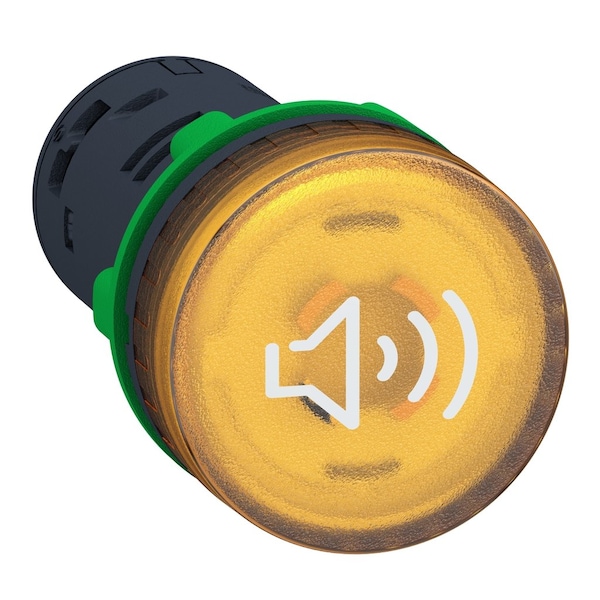

SCHNEIDER ELECTRIC XB5KS2M8 is a 240V AC buzzer used as an audible signaling unit for custom assembly. It produces up to 90 dB at 1 meter and features an adjustable acoustic level with continuous or intermittent tone operation. The unit is designed for flush mounting and direct-wire connection for use in panel and indicating bank applications requiring an audible signaling unit.

Key Features:

  • Audible alarm type: Buzzer with tone sound style
  • Voltage: 240V AC
  • Sound output: 90 dB maximum at 1 m
  • Signal pattern: Continuous or intermittent tone
  • Current draw: 35 mA (0.035 A)
  • Power rating: 5 W
  • Connection type: Screw terminal with screw clamp terminals
  • Mounting style: Flush mount
  • Housing material: Plastic
  • Color: Yellow; lens color: Yellow; housing colors: Black and Green
  • Dimensions: 2.17 in. depth, 1.14 in. height, 1.14 in. width, 0.87 in. diameter
  • Operating temperature: -40°C to 70°C (-40°F to 158°F)
  • Ratings: Multiple IK, IP, and NEMA ratings
  • Standards: Meets multiple CSA, EN, IEC, JIS, and UL standards
