Shop SCHNEIDER ELECTRIC

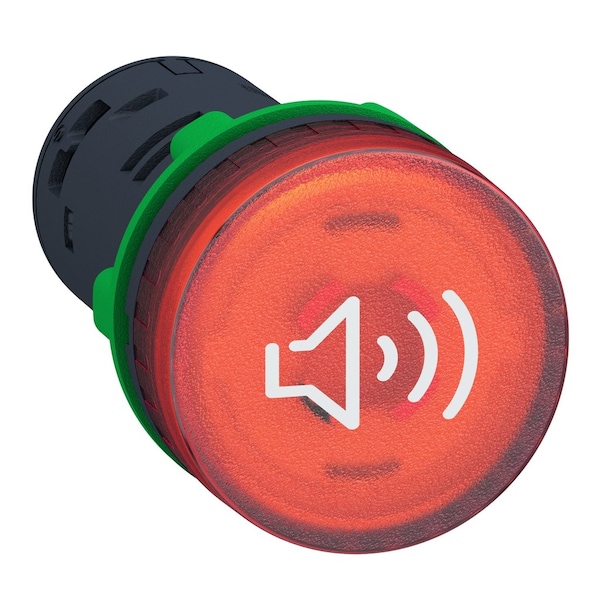

Buzzer, Buzzer, 240V AC, 90 dB, Plastic, Red

  • Mfr # XB5KS2M4

  • Zoro # G3202203

product price:  $47.55
/ea

Key Features

Housing Material
Plastic
Amps
35 mA
Diameter
0.87 in
Audible Alarm Type
Buzzer
Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XB5KS2M4
Zoro #
G3202203
UPC #
606481352453
Country of Origin
Singapore

Dimensions

Diameter
0.87 in
Width
1.14 in
Height
1.14 in
Depth
2.17 in
Overall Depth
2 5/32 in
Overall Width
1 1/8 in
Overall Diameter
7/8 in

Details

Item
Buzzer
Housing Material
Plastic
Amps
35 mA
Color
Red
Audible Alarm Type
Buzzer
Voltage
240V AC
Standards
CSA C22.2 No. 14, EN 50102, EN 60947-1, EN 60947-5-1, EN 60947-5-4, IEC 50102, IEC 60529, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Decibels
90 dB
Sound Pattern
continuous or intermittent tone
Current Drawn
35mA
Hazardous Class
II
Features
Indicating Bank Buzzer is an Accessory Designed as an Audible and Signaling Unit for Custom Assembly, It has a Continuous or Intermittent Signal and its Sound Acoustic Level is Adjustable
Housing Color
Black, Green
Includes
Screw Clamp Terminals
Flashes per Minute
60
Lens Color
Red
Operating Temp.
-40 Degrees to 158 Degrees F
Power Source
Wire
Wattage
5 W
Rating
IK03, IP66, IP67, IP69, IP69K, NEMA 13, NEMA 4X
Vibration
Vibrating
Alarm Volume @ 1 m - Maximum
90 dB
IP Rating
IP20, IP66, IP67, IP69, IP69K
Light Operating Mode
Flashing, Steady
Mounting Style
Flush Mount
NEMA Rating
NEMA 13, NEMA 4X
Control Protocol
Direct Wire
IK Rating
IK05
Sound Continuity
Continuous
Connection Type
Screw Terminal
Operating Temperature - Minimum
-40 Degrees C
Operating Current
0.035 A
Operating Temperature - Maximum
70 Degrees C
Light Source
LED
Sound Style
Tone
Operating Voltage
240V AC
Power Source - TS Only
Wire

Description

SCHNEIDER ELECTRIC XB5KS2M4 is a 240V AC buzzer for audible signaling in panel and control applications. It delivers up to 90 dB at 1 m and is configured for flush mounting with a plastic housing, red lens, and screw terminal connection. This buzzer accessory is intended for custom assembly and supports continuous or intermittent signaling with an adjustable acoustic level.

Key Features:

  • Audible alarm type: Buzzer with tone sound style for audible signaling.
  • Voltage and power: 240V AC operation, 35 mA current draw, 5 W wattage.
  • Sound output: 90 dB maximum at 1 m.
  • Signal pattern: Continuous or intermittent tone pattern.
  • Light indication: LED light source with flashing and steady operating modes; 60 flashes per minute.
  • Mounting and wiring: Flush mount design with screw terminal connection and screw clamp terminals included.
  • Construction: Plastic housing with red lens; housing colors listed as black and green.
  • Size: 2.17 in depth, 1.14 in height, 1.14 in width, and 0.87 in diameter.
  • Ratings: Multiple IK, IP, and NEMA ratings.
  • Temperature range: -40 Degrees C to 70 Degrees C / -40 Degrees F to 158 Degrees F.
  • Standards: Meets multiple CSA, EN, IEC, JIS, and UL standards.
