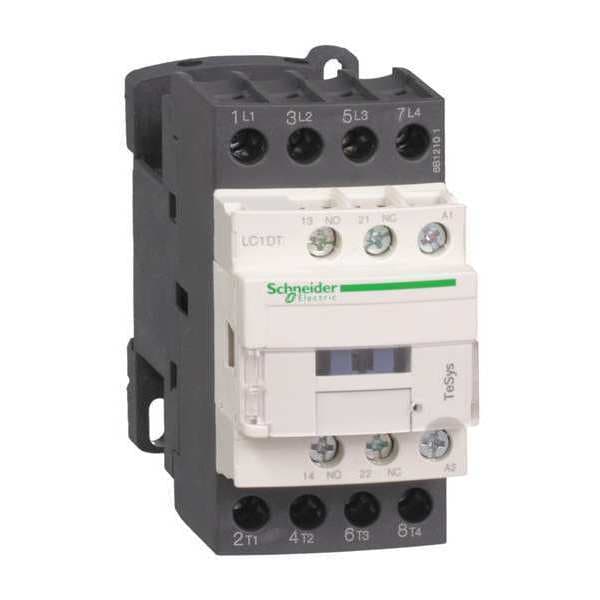

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw Clamp LC1DT32G7 - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1DT32G7

  • Zoro # G0569025

product price:  $197.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
4
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
32 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1DT32G7
Zoro #
G0569025
UPC #
785901503125
Country of Origin
France

Dimensions

Depth
3.9 in
Width
1.77 in
Height
3.58 in
Working Height
Up to 9842.52 ft
Overall Height
3.58 in
Overall Width
1.77 in
Overall Depth
3.9 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
4
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
32 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Coil Volts
120 V AC
Aux. Contact Configuration
1NO/1NC
Frame / Series / Class / Code
TeSys
Series
TeSys Deca
Hz
50/60
Enclosure NEMA Rating
No Enclosure
Reversing
No
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Features
Without Built-In Suppressor Module
Thermal Amperage
10 A (at 60°C Signalling Circuit), 32 A (at 60°C Power Circuit)
Application
Resistive Load
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Inrush VA
70 VA
Rated Short-Time Withstand Current
40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Rated Breaking Capacity
300 A @ 440V
Mounts On
Plate, Rail
Switching Current
5 mA (Signalling Circuit)
Fire Rating
UL 94 V1
Electrical Durability
1 Mcycles (32 A, AC-1, Less than 440 V)
Impedance
2.5 mOhm
Operating Time
4 to 19 ms (Opening), 12 to 22 ms (Closing)
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Rated Voltage
690V AC, 300V DC
Signalling Circuit Frequency
25 to 400 Hz
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Tightening Torque
1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit)
Electrical Connection
Screw Clamp Terminals
Net Weight
0.425 kg
Impulse Withstand Voltage
6 kV
Overvoltage Category
CAT III
Mechanical Durability
15 Mcycles
IP Rating
IP20
Non-Overlap Time
1.5 ms
Operating Speed
3600 cycles per hr
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Max. Temperature
850°C
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Watts Loss
2 to 3W
Switching Voltage
17 V (Signalling Circuit)
Rated Insulation Volts
600/690V
Includes Protective Cover
Yes
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Full Load Current - Inductive
32 A
Maximum Voltage Rating
690V AC
Contactor Style
IEC
Resistance Properties
Fire Resistant, Insulation Resistant
Electrical Operating Durability
1,000,000
Number of Normally Open Main Contacts
4
Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Embedded Surge Suppressor
No
Mechanical Operating Durability
15,000,000
Mounting Style
DIN Rail, Plate
Minimum Operating Temperature
-40 Degrees F
Full Load Current - Resistive
32 A

Description

Coil voltage: 120 V AC

  • Application: rated for operation within specified load types
  • Poles: 4; Main contacts: 4 normally open
  • Auxiliary contacts: 2 total (1NO/1NC)
  • Reversing: Non-Reversing
  • Frame/Series: IEC; TeSys Deca
  • Enclosure/IP: IP20; No Enclosure
  • Connection: Screw Clamp Terminals
  • Mounting: DIN Rail, Plate
  • Standards: UL 508, UL Listed, EN 60947-4-1, EN 60947-5-1, and others listed
  • Maximum voltage rating: rated for operation up to 690 V AC within specified conditions
  • Rated making capacity: rated for switching capacities as specified under test conditions
  • Full Load Amps: 32 A (resistive and inductive)
  • Electrical durability: tested for a specified number of operational cycles under defined conditions
  • Mechanical durability: tested for a specified number of mechanical operations under standard testing procedures
  • Inrush VA: rated power consumption during inrush and holding states within the specified temperature and frequency ranges
  • Impulse withstand: capable of withstanding impulse voltages up to the specified level when used according to installation guidelines
  • Shock resistance: tested shock resistance levels; actual performance may vary based on application conditions
  • Signalling circuit frequency: designed to operate within the specified frequency range; does not guarantee performance outside these parameters
  • Fuse amps: fuse ratings are provided as per specifications; proper fuse selection should be based on actual application requirements
  • Height x Width x Depth: 3.58 in × 1.77 in × 3.9 in
  • Net weight: 0.425 kg
  • Maximum operating temperature: 140°F; Max. Temperature: appears inconsistent with typical operating temperatures; verify product specifications before use
  • Impedance: 2.5 mΩ
  • Resistance properties: Fire Resistant, Insulation Resistant
  • Protection contents: Includes Protective Cover: Yes; Includes Auxiliary Contacts: Yes
  • Working frequency: 50/60 Hz
  • Environment attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
