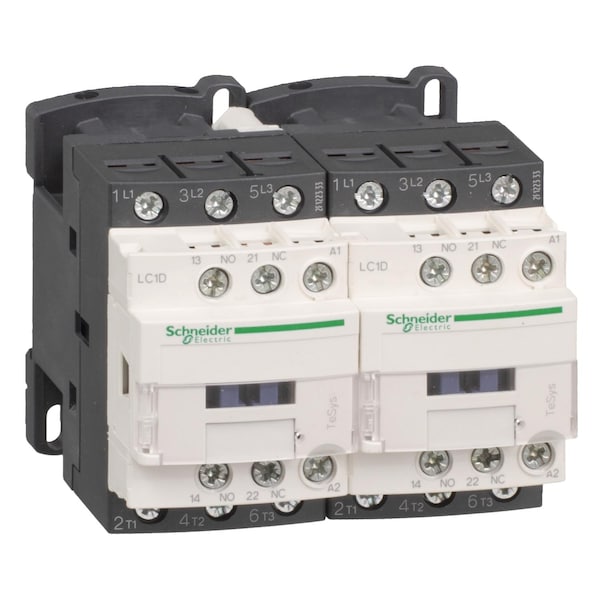

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D32F7

  • Zoro # G0849129

product price:  $506.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC2D32F7
Zoro #
G0849129
UPC #
785901207542
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
92 mm
Overall Height
85 mm
Overall Width
90 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
4
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30
Series
LC2D
HP @ 3 Phase - 575V
30 hp
Features
Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
Application
Motor Control, Resistive Load
Rated Insulation Volts
600/690V
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Mechanical Durability
15 Mcycles
Operating Speed
3600 cycles per hr
Switching Voltage
17 V (Signalling Circuit)
Rated Short-Time Withstand Current
60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Includes Protective Cover
Yes
Overvoltage Category
CAT III
Signalling Circuit Frequency
25 to 400 Hz
Fire Rating
UL 94 V1
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Non-Overlap Time
1.5 ms
Switching Current
5 mA (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Breaking Capacity
550 A @ 440V
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Max. Operating Watts
7.5 kW (at 220 to 230V AC 50 Hz), 15 kW (at 380 to 400V AC 50 Hz), 15 kW (at 415 to 440V AC 50 Hz), 18.5 kW (at 500V AC 50 Hz), 18.5 kW (at 660 to 690V AC 50 Hz)
Net Weight
0.797 kg
Electrical Durability
1.65 Mcycles (32 A, AC-3, Less than 440 V); 1.4 Mcycles (50 A, AC-1, Less than 440 V)
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Inrush VA
70 VA
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Watts Loss
2 to 3W
IP Rating
IP20
Impedance
2 mOhm
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Horsepower @ Three Phase - 480V AC
20 hp
Horsepower @ Three Phase - 240V AC
10 hp
Full Load Current - Resistive
50 A
Horsepower @ Single Phase - 240V AC
5 hp
Full Load Current - Inductive
32 A
Mounting Style
Plate, Rail
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)
Maximum Voltage Rating
690V AC, 300V DC

Description

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole reversing device with auxiliary contacts configured as 1NC/1NO (4 auxiliary contacts total). It utilizes a coil rated for 110 V AC and screw clamp terminals for electrical connections. It is part of the LC2D series.

Key features

  • The enclosure has an IP20 rating and includes a protective cover. Fire resistance ratings are provided per applicable standards.
  • Dimensions are approximately Width 90 mm, Height 85 mm, Depth 92 mm; Weight approximately 0.797 kg.
  • Rated voltages within specified ranges for compatible applications.
  • Full load currents rated at up to specified values under standard test conditions for inductive or resistive loads within specified parameters.
  • Power ratings based on standardized testing conditions within specified voltage and current ranges.
  • Capacities rated according to applicable standards for signaling and power circuits within specified parameters.
  • Capable of withstand­ing short-duration currents up to indicated levels under test conditions.
  • Environmental attributes indicate compliance with certain material specifications but do not imply safety or performance guarantees beyond standard certifications.
  • Durability figures represent typical operational cycles under specific testing conditions without implying guaranteed lifespan or performance in all environments.
