Item

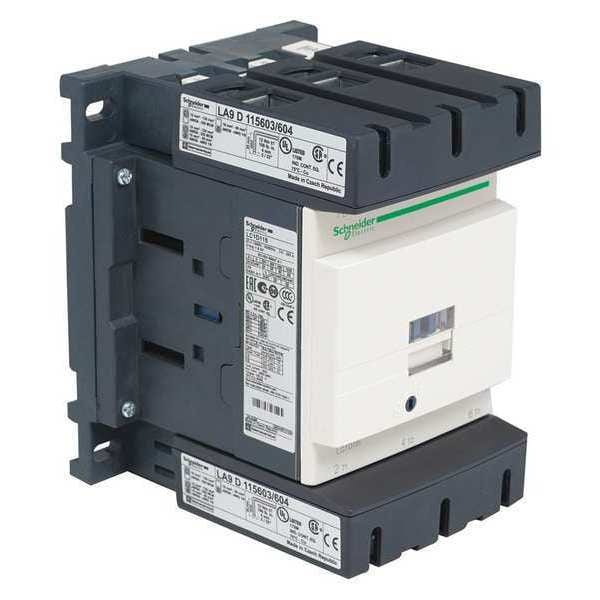

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Full Load Amps-Inductive
115 A
Full Load Amps-Resistive
200 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, GOST, DNV, RINA, LROS, BV, UL, CSA, GL, CCC, UKCA, CE, THIEC 60068-2-30
HP @ 3 Phase - 575V
100 hp
Impulse Withstand Voltage
8 kV
Includes Protective Cover
Yes
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Features
With Integral Suppression Device
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Operating Time
20 to 35 ms (Closing), 40 to 75 ms (Opening)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Overvoltage Category
CAT III
Electrical Durability
0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)
Application
Motor Control, Resistive Load
Rated Making Capacity
1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Control Circuit Voltage Limits
Operational DC: 0.75 to 1.2 Uc (at -40 to 55°C), 1 to 1.2 Uc (at 55 to 70°C); Drop-Out DC: 0.15 to 0.4 Uc (at -40 to 70°C)
Switching Current
5 mA (Signalling Circuit)
Rated Short-Time Withstand Current
250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Fuse Amps
250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Rated Breaking Capacity
1100 A @ 440V
Rated Insulation Volts
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Mechanical Durability
8 Mcycles
Signalling Circuit Frequency
25 to 400 Hz
Max. Operating Watts
30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)
Operating Speed
1200 cycles per hr
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
[Ui] Rated Insulation Voltage
power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
Protective Treatment
THIEC 60068-2-30
Maximum Operating Rate
1200 cyc/h 60°C
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
Mechanical Robustness
vibrations contactor open 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor closed 15 Gn for 11 ms) , shocks contactor open 6 Gn for 11 ms)
Operating Altitude
0...9842.52 ft (0...3000 m)
Contactor Application
resistive load, motor control
[Icw] Rated Short-Time Withstand Current
250 A 40°C - 10 min for power circuit, 550 A 40°C - 1 min for power circuit, 950 A 40°C - 10 s for power circuit, 1100 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
Control Circuit Type
DC standard
Climatic Withstand
IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Pole Contact Composition
3 NO
Power Dissipation Per Pole
24 W AC-1, 7.9 W AC-3, 7.9 W AC-3e
Utilisation Category
AC-3, AC-1, AC-4, AC-3e
Fire Resistance
850°C IEC 60695-2-1
Horsepower @ Three Phase - 208V AC
30 hp
Horsepower @ Three Phase - 240V AC
40 hp
Full Load Current - Resistive
200 A
Full Load Current - Inductive
115 A
Horsepower @ Three Phase - 480V AC
75 hp
Rated Operational Current
200 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 115 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 115 A (at <60°C) at <= 440 V AC AC-3e for power circuit
Maximum Operating Temperature
140 Degrees F
Maximum Voltage Rating
1000V AC, 300V DC
Mounting Style
Plate, Rail
Inrush Power in W
270-365 W 20°C)
Rated Operational Voltage
power circuit <= 1000 V AC 25...400 Hz, power circuit <= 300 V DC
Hold-In Power Consumption in W
2.4-5.1 W 20°C
Ambient Air Temperature For Operation
-40-60°C, 60-70°C with derating
Conventional Free Air Thermal Current
200 A (at 60°C Power Circuit)
