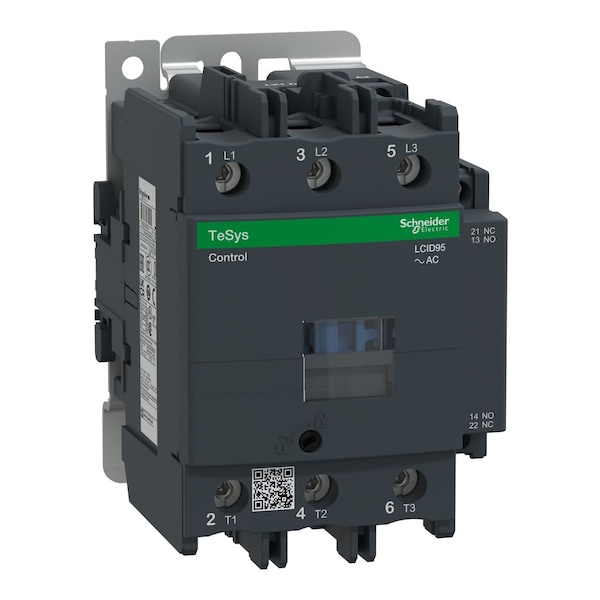

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp LC1D95M7 - main

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D95M7

  • Zoro # G310070547

product price:  $516.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
220V AC
Number of Poles
3
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D95M7
Zoro #
G310070547
UPC #
3389110451634
Country of Origin
Czechia

Dimensions

Overall Depth
5.12 in
Overall Width
3.35 in
Overall Height
5 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
220V AC
Number of Poles
3
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, UL 60947-4-1, UL 60947-5-1
IP Rating
IP20
Series
TeSys Deca
Horsepower @ Single Phase - 240V AC
15 hp
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Three Phase - 480V AC
60 hp
Electrical Operating Durability
1,200,000 (AC-3), 1,200,000 (AC-3e), 1,300,000 (AC-1)
Horsepower @ Three Phase - 600V AC
60 hp
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Mechanical Operating Durability
4,000,000
Full Load Current - Inductive
95 A
Horsepower @ Three Phase - 208V AC
30 hp
Mounting Style
DIN Rail, Plate
Resistance Properties
Fire Resistant, Insulation Resistant
Contactor Style
IEC
Phase
Three
Maximum Voltage Rating
690V AC
Frequency
50/60 Hz
Embedded Surge Suppressor
No
Full Load Current - Resistive
200 A

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a three-phase, non-reversing contactor with an auxiliary contact form of 1NC/1NO. It operates at a coil voltage of 220V AC and has a maximum voltage rating of 690V AC. The device is designed for DIN Rail or Plate mounting style and features an IP20 rating. With its fire resistance and insulation resistance properties, this product offers durability in various industrial settings.

Key Features:

  • Coil Voltage: Operates at 220V AC
  • Auxiliary Contact Form: Comes with 1NC/1NO configuration
  • Number of Poles: Three poles for versatile use
  • Mounting Style: Can be mounted on DIN Rail or Plate
  • Resistance Properties: Has fire resistance and insulation resistance properties
  • Reversing Capability: Non-Reversing function available
  • Terminal Connection Type: Screw Clamp connection type provided for secure installation.
  • Standards Compliance: Complies with CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-4–1, EN/IEC 60947–5–1 standards

    • Restrictions

    WARNING: Cancer For more information go to www.P65Warnings.ca.gov
