Item

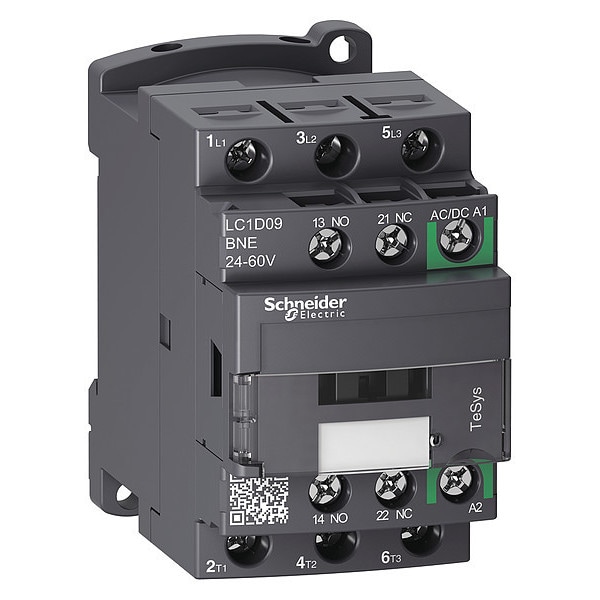

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC/DC
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
7 1/2 hp
Enclosure NEMA Rating
No Enclosure
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Includes Protective Cover
Yes
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Mechanical Durability
15 Mcycles
Overvoltage Category
CAT III
Electrical Durability
2.4 Mcycles (8 A, AC-3, Less than 440 V); 0.6 Mcycles (25 A, AC-1, Less than 440 V); 2.4 Mcycles (8 A, AC-3e, Less than 440 V)
Application
Motor Control, Resistive Load
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit)
Operating Speed
3600 cycles per hr
Rated Insulation Volts
690V
Switching Voltage
17 V (Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
Impulse Withstand Voltage
6 kV
Features
Built-In Bi-Directional Peak Limiting
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50 Hz AC-3), 4 kW (at 380 to 400V AC 50 Hz AC-3), 4 kW (at 415V AC 50 Hz AC-3), 4 kW (at 440V AC 50 Hz AC-3), 5.5 kW (at 500V AC 50 Hz AC-3), 5.5 kW (at 660 to 690V AC 50 Hz AC-3), 2.2 kW (at 220 to 230V AC 50 Hz AC-3e), 4 kW (at 380 to 400V AC 50 Hz AC-3e), 4 kW (at 415V AC 50 Hz AC-3e), 4 kW (at 440V AC 50 Hz AC-3e), 5.5 kW (at 500V AC 50 Hz AC-3e), 5.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Rated Breaking Capacity
250 A @ 440V
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Environmental Attributes
Mercury Free, Pollution Degree 3
Horsepower @ Single Phase - 240V AC
1 hp
Horsepower @ Three Phase - 480V AC
5 hp
Mechanical Operating Durability
15,000,000
Horsepower @ Three Phase - 240V AC
2 hp
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Mounting Style
DIN Rail, Plate
Resistance Properties
Fire Resistant, Insulation Resistant
Maximum Operating Temperature
140 Degrees F
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 208V AC
2 hp
Full Load Current - Resistive
20 A
NEMA Enclosure Rating
No Enclosure
Full Load Current - Inductive
9:00 AM
Maximum Voltage Rating
690V AC
Electrical Operating Durability
2,400,000, 600,000
Number of Normally Open Main Contacts
3
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Single Phase - 120V AC
1/3 hp
Includes Auxiliary Contacts
Yes
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)
