  7. IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw

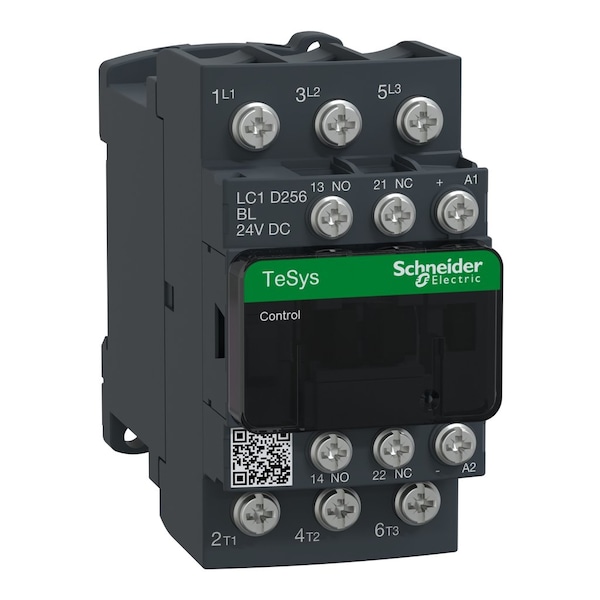

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw LC1D256BL - main
Shop SCHNEIDER ELECTRIC

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw

  • Mfr # LC1D256BL

  • Zoro # G910070411

product price:  $233.99
/ea
Sold in multiples of 16 for $3,743.84
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D256BL
Zoro #
G910070411
UPC #
3389110809084
Country of Origin
France

Dimensions

Overall Depth
3.98 in
Overall Width
1.77 in
Overall Height
3.35 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Rating
IP20
Series
TeSys Deca
Maximum Voltage Rating
690V AC
Mechanical Operating Durability
30,000,000
Full Load Current - Inductive
150 A
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Horsepower @ Single Phase - 240V AC
3 hp
Contactor Style
IEC
Frequency
50 Hz
Electrical Operating Durability
1,400,000 (AC-1), 1,650,000 (AC-3), 1,650,000 (AC-3e)
Mounting Style
DIN Rail, Plate
Embedded Surge Suppressor
No
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 600V AC
20 hp
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Phase
Three
Horsepower @ Single Phase - 120V AC
2 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Full Load Current - Resistive
200 A
Horsepower @ Three Phase - 480V AC
15 hp

Description

The Schneider Electric IEC Magnetic Contactor is a TeSys Deca 3-pole, non-reversing magnetic switch rated for operation within the specified electrical parameters. It operates from a 24V DC coil and includes auxiliary contacts configured as 1NC/1NO (2 total). The device uses screw-terminals and can be mounted on DIN Rail or Plate, with IEC-standard design and is rated for use up to 690V AC at 50 Hz in accordance with applicable standards.

Key features

  • Coil voltage: 24V DC
  • Poles: 3
  • Auxiliary contacts: 2 total (1NC/1NO)
  • Reversing capability: Non-Reversing
  • Mounting style: DIN Rail, Plate
  • Terminal connection type: Screw
  • Maximum voltage rating: 690V AC
  • Frequency: 50 Hz
  • IP Rating: IP20
  • Embedded surge suppressor: No
  • Series: TeSys Deca
  • Phase: Three
  • Full Load Amps (Inductive/Resistive): 150 A / 200 A
  • Full Load Current (Inductive/Resistive): 150 A / 200 A
  • Horsepower (various voltages): 120V AC 2 hp; 240V AC 3 hp; 208V AC 7 1/2 hp; 240V AC 7 1/2 hp; 480V AC 15 hp; 600V AC 20 hp
  • Mechanical operating durability: 30,000,000 cycles
  • Electrical operating durability: 1,400,000 (AC-1), 1,650,000 (AC-3), 1,650,000 (AC-3e)
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • Auxiliary contacts included: Yes
  • Resistance properties: Fire Resistant, Insulation Resistant

    • Restrictions
