  7. IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp

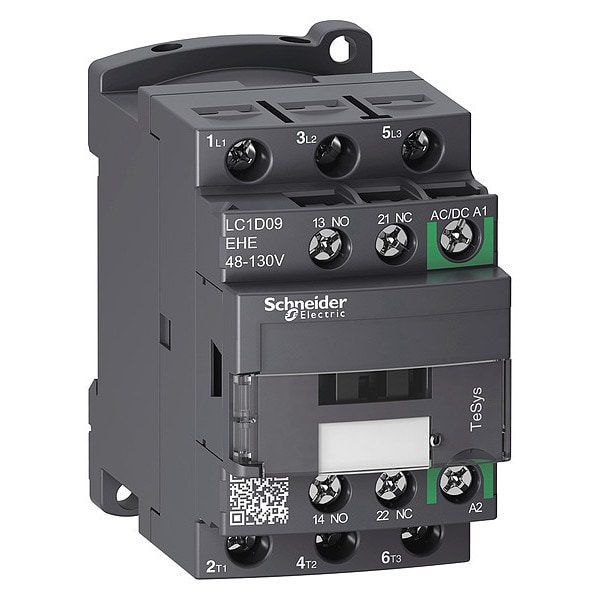

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp LC1D09EHE - main

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D09EHE

  • Zoro # G6036429

product price:  $62.69
/ea

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D09EHE
Zoro #
G6036429
UPC #
03606480987649
Country of Origin
France

Dimensions

Overall Width
1.77 in
Overall Depth
3.39 in
Overall Height
3.03 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
7 1/2 hp
Reversing
No
Enclosure NEMA Rating
No Enclosure
Series
TeSys Deca
IP Rating
IP20
Electrical Operating Durability
2,400,000, 600,000
Full Load Current - Resistive
20 A
Horsepower @ Three Phase - 480V AC
5 hp
Contactor Style
IEC
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
140 Degrees F
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
1 hp
Horsepower @ Three Phase - 208V AC
2 hp
Mechanical Operating Durability
15,000,000
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Minimum Operating Temperature
-40 Degrees F
Number of Normally Open Main Contacts
3
Mounting Style
DIN Rail, Plate
Horsepower @ Single Phase - 120V AC
1/3 hp
Phase
Three
Horsepower @ Three Phase - 240V AC
2 hp
Embedded Surge Suppressor
No
Resistance Properties
Fire Resistant
Maximum Voltage Rating
690V AC
Full Load Current - Inductive
9:00 AM
Environmental Attributes
Mercury Free, Pollution Degree 3
Hold VA
1.3 VA
Rated Breaking Capacity
250 A @ 440V
Operating Speed
3600 cycles per hr
Inrush VA
25 VA
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Includes Protective Cover
Yes
Non-Overlap Time
1.5 ms
Mechanical Durability
15 Mcycles
Application
Motor Control, Resistive Load
Watts Loss
0.8W
Overvoltage Category
CAT III
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Features
Built-In Bi-Directional Peak Limiting
Signalling Circuit Frequency
25 to 400 Hz
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit)
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50 Hz AC-3), 4 kW (at 380 to 400V AC 50 Hz AC-3), 4 kW (at 415V AC 50 Hz AC-3), 4 kW (at 440V AC 50 Hz AC-3), 5.5 kW (at 500V AC 50 Hz AC-3), 5.5 kW (at 660 to 690V AC 50 Hz AC-3), 2.2 kW (at 220 to 230V AC 50 Hz AC-3e), 4 kW (at 380 to 400V AC 50 Hz AC-3e), 4 kW (at 415V AC 50 Hz AC-3e), 4 kW (at 440V AC 50 Hz AC-3e), 5.5 kW (at 500V AC 50 Hz AC-3e), 5.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Impulse Withstand Voltage
6 kV
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Tightening Torque
1.7 Nm
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Net Weight
0.368 kg
Impedance
2.5 mOhm
Switching Voltage
17 V (Signalling Circuit)
Rated Insulation Volts
690V
Electrical Durability
2.4 Mcycles (8 A, AC-3, Less than 440 V); 0.6 Mcycles (25 A, AC-1, Less than 440 V); 2.4 Mcycles (8 A, AC-3e, Less than 440 V)
Fire Rating
UL 94 V1
Switching Current
5 mA (Signalling Circuit)
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Description

Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with 1NO/1NC auxiliary contacts and a 48–130 V AC/DC coil. Designed to operate within specified parameters for controlling power circuits in motor control and resistive-load applications; features conforming to IEC standards.

Poles: 3; Main contacts: 3 NO; Auxiliary contacts: 2 (1NO/1NC)

  • Coil voltage: 48–130 V AC/DC; Frequency: 50/60 Hz
  • Contactor style/series: IEC; Frame/Code: TeSys Deca; Reversing: Non-Reversing
  • Electrical connection: Screw Clamp; Terminal: Screw Clamp
  • Rated for operation up to 690 V AC/DC within specified conditions; IP Rating: IP20
  • Enclosure: No Enclosure; Includes Protective Cover
  • Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL Listed, UL 60947-4-1
  • Mechanical durability: 15 Mcycles; Electrical durability: 2.4 Mcycles (8 A AC-3, Less than 440 V); 0.6 Mcycles (25 A AC-1); 2.4 Mcycles (8 A AC-3e)
  • Full Load Amps: Inductive 9 A; Resistive 20 A
  • Rated making capacity: 250 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
  • Short-time withstand: 100 A (1 s signalling); 120 A (500 ms); 140 A (100 ms); 30 A (40°C, 10 min Power Circuit); 61 A (40°C, 1 min); 105 A (40°C, 10 s); 210 A (40°C, 1 s)
  • Inrush VA: 25 VA; Hold VA: 1.3 VA
  • In/out times: 45–55 ms (Closing); 20–90 ms (Opening); Non-overlap: 1.5 ms
  • Depth x Height x Width: 3.38 in × 3.03 in × 1.77 in
  • Net weight: 0.368 kg
  • Maximum ambient operating temperature: 140 °F (60 °C)
  • Shock resistance: 15 G (Closed); 10 G (Open); Impulse withstand voltage: 6 kV
  • Phase: Three; Standards also include CAT III overvoltage category
  • Insulation resistance: Greater Than 10 MΩ (Signalling Circuit)
  • Environment attributes: Mercury Free; Pollution Degree 3
