- Item

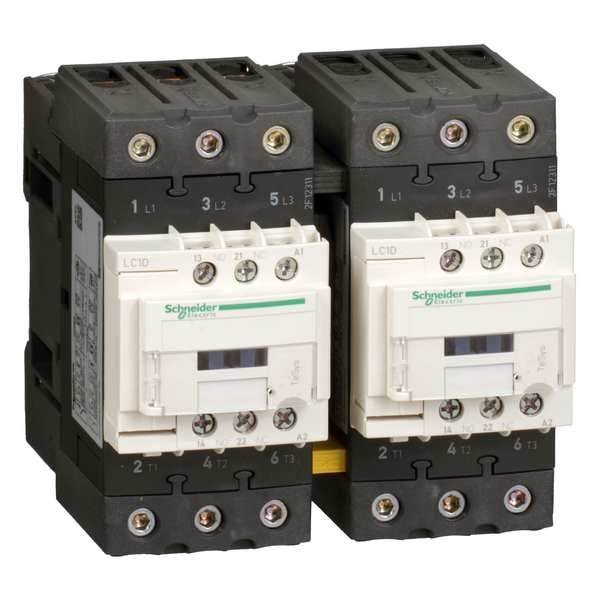

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 40 A
- Full Load Amps-Resistive
- 60 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
- Frame / Series / Class / Code
- TeSys
- Series
- TeSys Deca
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- Yes
- HP @ 3 Phase - 575V
- 30 hp
- Features
- Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
- Application
- Motor Control, Resistive Load
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Fuse Amps
- 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 60 Hz)
- Operating Speed
- 3600 cycles per hr
- Switching Current
- 5 mA (Signalling Circuit)
- Watts Loss
- 4 to 5W
- Tightening Torque
- 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit)
- Net Weight
- 1.87 kg
- Rated Insulation Volts
- 600/690V
- Hold VA
- 13 VA
- Inrush VA
- 140 VA
- Rated Short-Time Withstand Current
- 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- IP Rating
- IP20
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Rated Breaking Capacity
- 800 A @ 440V
- Overvoltage Category
- CAT III
- Switching Voltage
- 17 V (Signalling Circuit)
- Max. Operating Watts
- 18.5 kW (at 380 to 400V AC 50 Hz), 11 kW (at 220 to 230V AC 50 Hz), 22 kW (at 415 to 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz)
- Impulse Withstand Voltage
- 6 kV
- Impedance
- 1.5 mOhm
- Operating Time
- 4 to 19 ms (Opening), 12 to 26 ms (Closing)
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Mechanical Durability
- 6 Mcycles
- Non-Overlap Time
- 1.5 ms
- Includes Protective Cover
- Yes
- Electrical Durability
- 1.5 Mcycles (40 A, AC-3, Less than 440 V); 1.4 Mcycles (60 A, AC-1, Less than 440 V)
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Fire Rating
- UL 94 V1
- Horsepower @ Three Phase - 600V AC
- 30 hp
- Number of Normally Open Main Contacts
- 3
- Full Load Current - Inductive
- 40 A
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Electrical Operating Durability
- 1,400,000, 1,500,000
- Horsepower @ Three Phase - 208V AC
- 10 hp
- Mounting Style
- DIN Rail, Plate
- Includes Auxiliary Contacts
- Yes
- Full Load Current - Resistive
- 60 A
- Frequency
- 60 Hz
- Minimum Operating Temperature
- -40 Degrees F
- Horsepower @ Three Phase - 240V AC
- 10 hp
- Maximum Operating Temperature
- 140 Degrees F
- Maximum Voltage Rating
- 690V AC
- NEMA Enclosure Rating
- No Enclosure
- Horsepower @ Single Phase - 120V AC
- 3 hp
- Mechanical Operating Durability
- 6,000,000
- Embedded Surge Suppressor
- No
- Horsepower @ Single Phase - 240V AC
- 5 hp
- Horsepower @ Three Phase - 480V AC
- 30 hp
- Contactor Style
- IEC
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Product Name
- TeSys D; TeSys Deca
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
- Heat Dissipation
- 4 to 5 W 60 Hz
- Ambient Air Temperature For Storage
- -76 to 176°F (-60 to 80°C)
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Mechanical Robustness
- Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 60 A (at 140°F (60°C)) for power circuit
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Front Cover
- With
- Utilisation Category
- AC-3; AC-1; AC-3e
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Control Circuit Type
- AC 60 Hz
- Protective Treatment
- TH IEC 60068-2-30
- Control Circuit Voltage
- 120 V AC 60 Hz
- Interlocking Type
- Mechanical
- Rated Operational Current
- 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 60 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Pollution Degree
- 3
- Contactor Application
- Motor control; Resistive load
- Device Presentation
- Preassembled with reversing power busbar
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Climatic Withstand
- IACS E10; IEC 60947-1 Annex Q category D
- Inrush Power in VA
- 140 VA 60 Hz cos phi 0.75 (at 68°F (20°C))
- Power Dissipation Per Pole
- 2.4 W AC-3; 5.4 W AC-1; 2.4 W AC-3e
- Pole Contact Composition
- 3 NO
