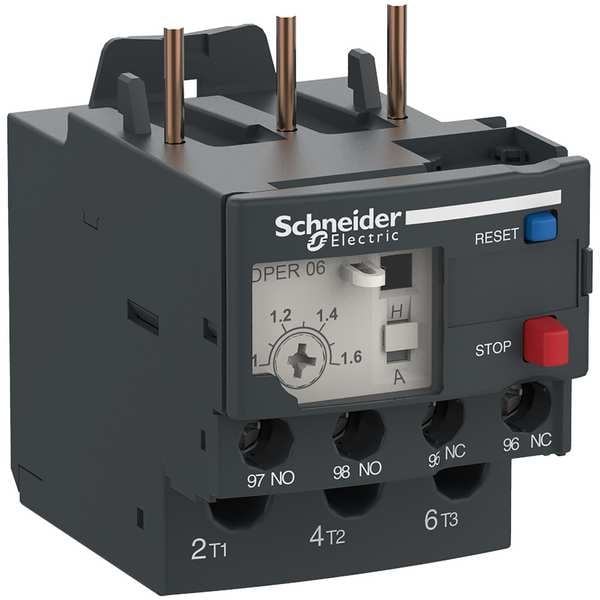

IEC Overload Relay, 1NC/1NO, 1 A Min current, 1.6 A Max current, 690V AC

IEC Overload Relay, 1NC/1NO, 1 A Min current, 1.6 A Max current, 690V AC

Mfr # DPER06
Zoro # G603481128

$29.75

Key Features

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

1:00 AM

Maximum Overload Relay Current Setting

1.6 A

Trip Class

Overload Protection Type

Thermal

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

DPER06

Zoro #

G603481128

UPC #

Country of Origin

France

Dimensions

Body Height - Relay

2.6 in

Depth

70 mm

Height

66 mm

Width

45 mm

Overall Height - Relay

2.6 in

Overall Height

2.6 in

Body Height

2.6 in

Details

Item

IEC Overload Relay

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

1:00 AM

Maximum Overload Relay Current Setting

1.6 A

Trip Class

Overload Protection Type

Thermal

Maximum Voltage Rating

690V AC

Standards

cUL, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Use With - Contactors and Starters

Contactor DPE09-38

Sensing Method

Thermal

Trip Class - Overload

Frame / Series / Class / Code

Class 10, Easy TeSys DPER

Features

400 Hz Power Circuit IEC 60947-4-1, 5 A Signalling Circuit, 690 V AC

Separate Mounting

Yes, Additional Items Needed

Number of Poles

Kit Required for Retrofit Mtg.

LAD9R1

Control Type

Red push-button stop || Blue push-button reset

Range

Easy TeSys

Ambient Air Temperature For Storage

-60-70°C

Protection Type

BS fuse 5 A - control circuit || GB2 circuit breaker 5 A - control circuit || gG fuse 5 A - control circuit

Surge Withstand

6 kV IEC 60801-5

Product Or Component Type

thermal overload relay

Tripping Threshold

1.14 +/- 0.06 Ir IEC 60947-4-1

Product Name

Easy TeSys DPER

Network Type

DC || AC

Phase Failure Sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

Thermal Overload Class

class 10 IEC 60947-4-1

Relay Application

overload protection

Protective Treatment

TH IEC 60068

Tightening Torque

control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals

Product Certifications

cUL

Product Compatibility

contactor DPE09-38

Thermal Protection Adjustment Range

1-1.7 A

Dielectric Strength

1.89 kV 50 Hz IEC 60947-1

Permissible Current

3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit

Connections - Terminals

control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-6 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end

Ambient Air Temperature For Operation

-20-60°C without derating IEC 60947-4-1

Device Short Name

DPER

Vibration Resistance

6 gn on plate IEC 60068-2-6

Shock Resistance

15 gn 11 ms IEC 60068-2-7

Network Frequency

0 to 400 Hz

Maximum Operating Temperature

140 Degrees F

Relay Style

IEC

Mounting Style

Direct To Contactor

Terminal Connection Type

Screw Clamp Terminals

IP Rating

IP20

Phase

Three

Reset Type

Auto, Manual

Compatible with Series

Easy TeSys

Minimum Operating Temperature

-4 Degrees F

Conventional Free Air Thermal Current

5 A signalling circuit

Rated Operational Voltage

690 V AC 0 to 400 Hz power circuit IEC 60947-4-1

Rated Insulation Voltage

power circuit 600 V cUL || power circuit 690 V IEC 60947-4-1

Description

IEC Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 1.6 A, Minimum Overload Relay Current Setting 1 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series Easy TeSys, Relay Style IEC, Overload Protection Type Thermal, Phase Three
