  15. Illuminated Push Button, 30 mm, SPDT, Green

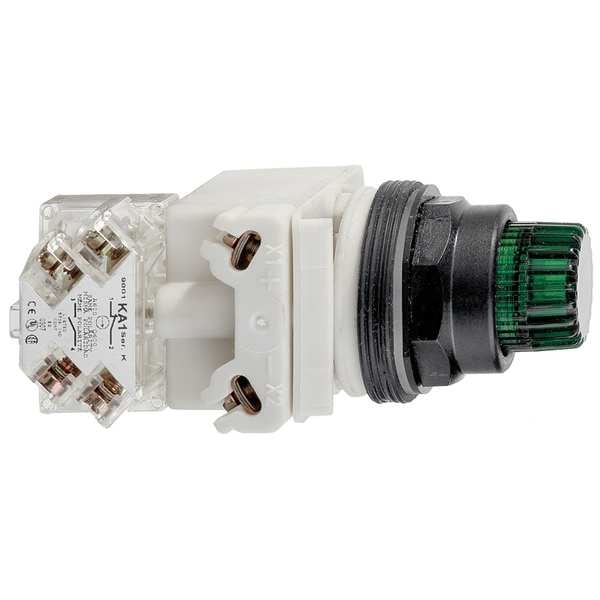

Schneider Electric Illuminated Push Button, 30 mm, SPDT, Green 9001SK2L35GH13 - main

Illuminated Push Button, 30 mm, SPDT, Green

  • Mfr # 9001SK2L35GH13

  • Zoro # G0838713

product price: $200.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SK2L35GH13
Zoro #
G0838713
UPC #
785901040996
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Overall Width
2.13 in
Overall Depth
2.8 in
Manufacturer Warranty Length
18 mo
Overall Height
1.65 in
Mounting Diameter
30 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Type of Operator
Round Button
NEMA Contact Rating Designation
A600/Q600
Color
Green
Lamp Voltage
24V AC/DC
Basic Material
Plastic
Contact Type
1NO/1NC
Contact Rating
10A @ 600V AC
Number of Operators
1
Bezel
Corrosion Resistant Thermoplastic
Lamp Module Type
Full Voltage
Replacement Lamp
Mfr. No. 1819
IP Rating
IP66
Contact Form
SPDT
Lamp Type
Incandescent
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Lamp Module Voltage
24V AC/DC
Voltage
24V AC/DC
Bezel Material
Plastic
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
9001SK
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type
Push Button Operators
Resistance Properties
Chemical Resistant, Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
0
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Mechanical Operating Durability
5.00 x 10^6
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Lamp Voltage - Maximum
28 V AC/DC
Operator Voltage Rating - Maximum
600 V AC
Operator Material
Plastic
Operating Position
any position
Contact Operation
standard
Ip Degree Of Protection
IP66 IEC 60529
Contacts Type And Composition
1 C/O
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
Product Or Component Type
illuminated push-button
Contacts Material
silver alloy contacts
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
Bulb Base
BA 9s
[Ith] Conventional Free Air Thermal Current
10 A
Protective Treatment
TC
Ambient Air Temperature For Operation
-25-70°C
Cap/Operator Or Lens Colour
green
Operator Additional Information
without guard
Shape Of Screw Head
cross slotted
Operator Profile
projecting, green projecting, unmarked
Shock Resistance
50 gn IEC 60068-2-27
Device Presentation
complete product
[Us] Rated Supply Voltage
24 to 28 V AC/DC, 24 to 28 V
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Device Short Name
9001SK
Light Block Supply
direct 24 V AC/DC, full voltage
Product Certifications
UL 508 || NEMA
Positive Opening
without
Connections - Terminals
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
Mechanical Durability
5000000 cycles
Rated Breaking Capacity
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Electrical Shock Protection Class
class II IEC 61140
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13
Shape Of Signaling Unit Head
octagonal
Light Source
incandescent

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Corrosion Resistant Thermoplastic, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
