  13. Selector Switch, 22 mm, 2NO, Black

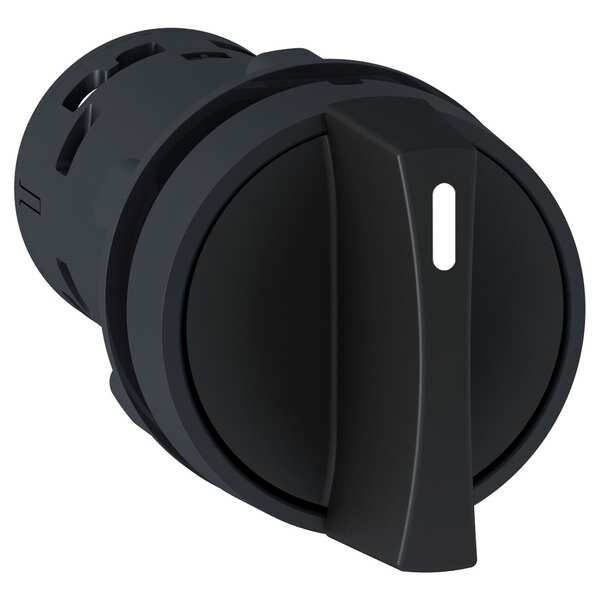

Schneider Electric Selector Switch, 22 mm, 2NO, Black XB7ND33 - main

Selector Switch, 22 mm, 2NO, Black

  • Mfr # XB7ND33

  • Zoro # G1012503

product price: $28.15
/ea

Key Features

Size
22 mm
Basic Material
Plastic
Type of Operator
Knob
Action
Maintained/Maintained/Maintained
Contact Form
2NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB7ND33
Zoro #
G1012503
UPC #
-
Country of Origin
Indonesia

Dimensions

Size
22 mm
Cad Overall Depth
68.5 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Knob
Action
Maintained/Maintained/Maintained
Contact Form
2NO
Operator Head Material
Plastic
Cam
No Cam Included
Color
Black
NEMA Rating
12, 3
Bezel Material
Plastic
Position
3
Key Removal
No Key
Bezel Color
Black
Terminal Connection
screw clamp terminals
IP Rating
IP20, IP65
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Series
XB7
AC Contact Rating
0.3 A @ 240 V, 0.6 A @ 120 V
Nema Degree Of Protection
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Contact Operation
slow-break
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Fixing Mode
fixing nut 2-2.4 N.m
Contacts Type And Composition
2 NO
Ambient Air Temperature For Operation
-25-70°C
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Device Short Name
XB7
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Reliability
Λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4
Product Or Component Type
selector switch
[Ie] Rated Operational Current
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
300000 cycles
Short-Circuit Protection
4 A cartridge fuse gG EN/IEC 60947-5-1
Operator Position Information
3 positions +/- 45°
Tightening Torque
0.8-1.2 N.m EN 60947-1
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Operator Profile
black standard handle
Electrical Durability
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
Shape Of Signaling Unit Head
round
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Electrical Shock Protection Class
class II IEC 61140
Terminals Description Iso N°1
(23-24)NO || (13-14)NO
Positive Opening
without
Shock Resistance
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Terminals Description Iso N°1
(23-24)NO || (13-14)NO
Switch Function @ 1st Position
On
Hazardous Location Specification
Not Rated
Contact Block Material
Plastic
Switch Function @ 4th Position
No Fourth Position
Operator Head Type
Short-Handled Knob
Switch Function @ 2nd Position
Off
Number of Positions
3
NEMA Enclosure Rating
12, 3, 4
Operator Illumination
Non-Illuminated
Switch Function @ 3rd Position
On
Operator Head Color
Black

Description

Selector Switch, 22 mm, 3 Position, Maintained/Maintained/Maintained Action, 2NO Contact Form, Type of Operator Knob, Color Black, No Key Key Removal, Operator Head Material Plastic, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 12, 3, IP Rating IP20, IP65, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508
