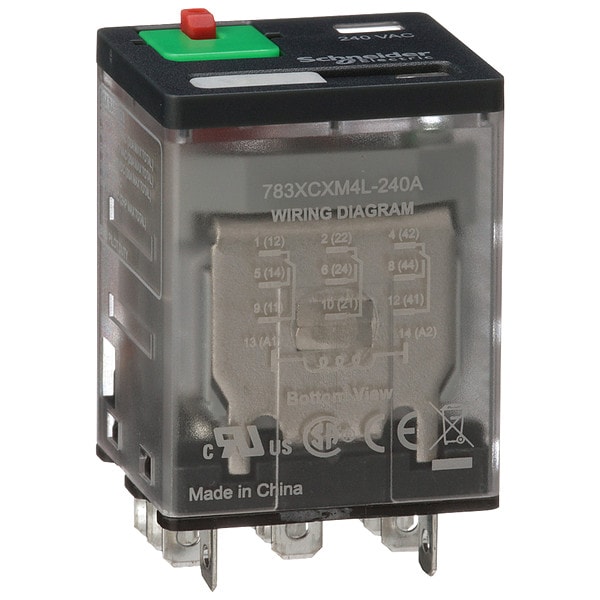

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector 783XCXM4L-240A - main

CAD Viewer & Download Files

Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector

  • Mfr # 783XCXM4L-240A

  • Zoro # G2427083

CAD Available
product price: $13.35
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
11
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
783XCXM4L-240A
Zoro #
G2427083
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.85 in
Flat Pin Width
0.187 in
Body Depth
1.54 in
Body Height
1.07 in
Body Width
1.2 in
Overall Depth
2.07 in
Depth
1.07 in (27.3 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
11
Coil Voltage
240V AC
Current Rating
15 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Contact Material
Gold Flashed Silver Alloy
Safety Rating
IP40
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. 70-783D11-1A
Power Consumption - Relay
1.5 VA
Socket Code
C
Status Indicator
LED and Mechanical Flag
Features
Bi-polar LED, IP40, Locking push button, Mechanical flag indicator, Removable ID tag
Standards
CE Certified, CSA Certified, UL Listed
Minimum Switching Current
10 mA
Input Voltage
240V AC
For Use With
Automation Panels and Controls
Horsepower @ 240V AC
3/4 hp
Mechanical Operating Durability
10,000,000
Horsepower @ 120V AC
1/2 hp
Coil Resistance
11,300 ohm
Weight
2.12 oz
Response Time
20 msec
Series
783 Series
Frequency
50/60 Hz
Push-To-Test Method
Lockable Push Test Button
Maximum Operating Temperature
131 Degrees F
IP Rating
IP40
Minimum Operating Temperature
-40 Degrees F
Power Consumption
1.85 W, 2.05 VA
Resistance Properties
Shock-Resistant, Vibration-Resistant
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Electrical Operating Durability
100,000
Maximum Switching Voltage
250V AC, 300V DC
Motor Rated
Yes
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Contact Composition
3 NO + 3 NC
Power consumption in VA
2.05 VA AC
Power consumption in W
1.85 W DC
Operating Time
20 ms operating; 20 ms tripping
Product Certifications
UL; CE; CSA
Control Type
Lockable test button
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Product Range
Legacy
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Voltage Range
0.8...1.1 Un AC/DC
Connections Terminals
Faston terminals
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Shock Resistance
15 gn in operation
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 11, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable
