  13. Surface, Open Power Relay, Square, 40 A, 5, Screw

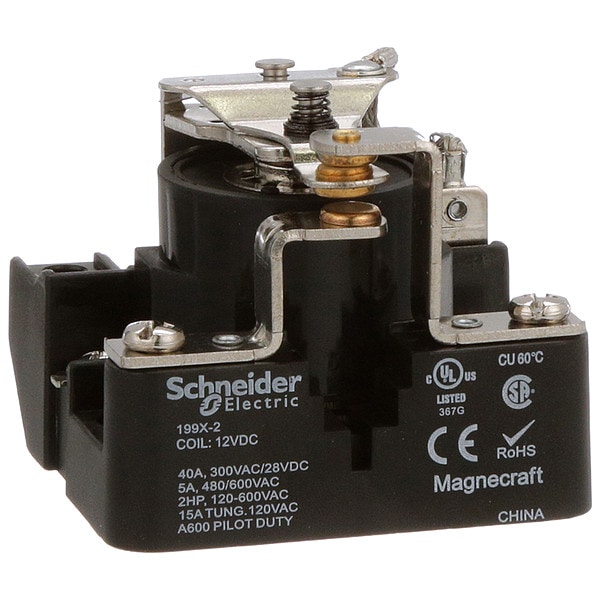

Schneider Electric Surface, Open Power Relay, Square, 40 A, 5, Screw 199X-2 - main

Surface, Open Power Relay, Square, 40 A, 5, Screw

  • Mfr # 199X-2

  • Zoro # G1568944

product price: $34.19
/ea

Key Features

Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Square
Number of Pins
5
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199X-2
Zoro #
G1568944
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.18 in
Dimensions
2.18"H, 2.50"W, 2.43"D
Body Width
2.5 in
Overall Depth
2.06 in
Body Depth
2.49 in
Body Height
2.49 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Square
Number of Pins
5
Coil Voltage
12V DC
Current Rating
40 A
Contact Form
SPDT
Contact Rating (AC)
15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V
Contact Rating (DC)
40 A @ 28V
Contact Material
Silver Alloy
HP @ 240V
1 1/2
HP @ 120V
1 1/2
Hz
50/60
Coil Rating
10.0VA, 4.0W
Number of Poles
1
Power Consumption - Relay
10.0 W
Hz - Electrical
50/60 Hz
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Standards
CE Certified, CSA Certified, UL Listed
Features
Riveted Construction
Series
199 Power Series
Electrical Operating Durability
100,000
Minimum Switching Current
1,000 mA
Maximum Operating Temperature
131 Degrees F
Maximum Switching Voltage
600V DC
Compatible with Manufacturer Model Number
50-1289-P
Operating Current
15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Minimum Operating Temperature
-67 Degrees F
Input Voltage
12V DC
Power Consumption
4 W, 10 VA
Response Time
30 msec
Weight
0.6
Motor Rated
Yes
Sealing
Open
Coil Resistance
70 ohm
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Horsepower @ 240V AC
2 hp
Horsepower @ 120V AC
2 hp
Frequency
50/60 Hz
Compatible Manufacturer Part Number
50-1289-P
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Wire Range
AWG 14
Contact Composition
1 NC + 1 NO
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Voltage Range
0.85...1.1 Un AC/DC
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Product Certifications
UL Listed; CSA; CE
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Cover Type
Open cover
Power consumption in W
4 W DC
Power consumption in VA
10 VA AC
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Type
Power, Open Style

Description

Open Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 5, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.49 in, Body Height 2.49 in, Body Width 2.5 in, Coil Resistance 70 ohm, Compatible with Grainger Part Number 6CVA2
