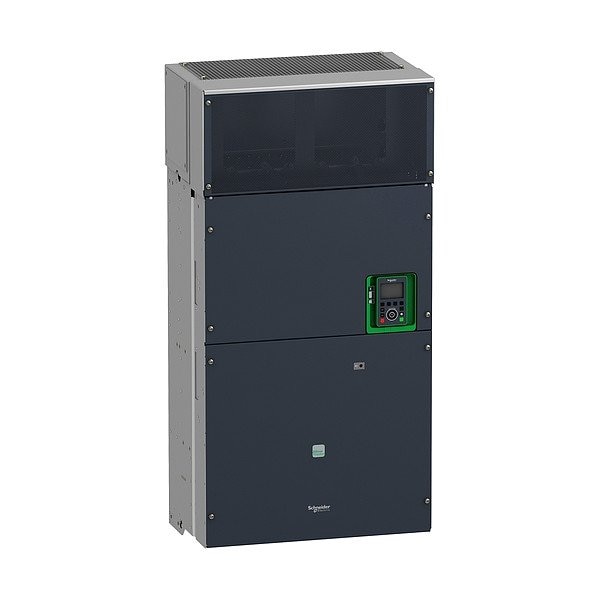

Variable Speed Drive, Black/Green

Mfr # ATV930C31N4CUS
Zoro # G922732178

58,224.99

Free Shipping & Returns

Key Features

Input Frequency

60/50 Hz

Number of Outputs - Relay

Includes Communication Port

Yes

Product Type

Variable Frequency Drive

Overall Height

1,195 mm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ATV930C31N4CUS
Zoro #: G922732178
UPC #: -
Country of Origin: United States

Dimensions

Overall Height: 1,195 mm
Overall Depth: 380 mm
Overall Width: 598 mm

Details

Input Frequency: 60/50 Hz
Number of Outputs - Relay: 3
Includes Communication Port: Yes
Product Type: Variable Frequency Drive
Item: Variable Speed Drive
Includes Ethernet Port: Yes
Output Voltage: 480V AC
Adjustable Acceleration Time: 0.01 to 9999 sec
Number of Inputs - Analog: 3
Adjustable Deceleration Time: 0.01 to 9999 sec
Protection: Circuit Breaker, Drive Thermal Overload, Overspeed, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Safe Torque Off, Undervoltage
Output Phase: Three
Dynamic Braking: No
Number of Inputs - Digital: 10
Output Current - Maximum: 616 A
Series: Altivar Process ATV900
Input Phase: Three
Input Voltage: 380-480V AC
Control Type: PLC
Includes Brake Chopper: No
Accepts External Control Inputs: Yes
Number of Outputs - Analog: 2
Torque Application: Constant Torque, Variable Torque
Application: Process and Utilities
Output Power - Kilowatt - Maximum: 250 kW, 315 kW
Line Contactor Design: With Line Contactor
Bypass Design: No Bypass
Color: Black/Green
IP Rating: IP21
Includes EMI Filter: Yes
Input Type: Analog, Digital
Communication Protocols Supported: EtherNet/IP, Modbus Serial, Modbus TCP
Number of Outputs - Digital: 2
Style: Chassis
Output Horsepower: 4 hp
Start/Stop Control: Programmable
Output Frequency - Maximum: 599 Hz
Output Type: Analog, Digital, Relay
Standards: CE, CSA, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, TUV, UL, UL 508C

Description

Variable Speed Drive, Input Voltage 380-480V AC, Input Frequency 60/50 Hz, Output Voltage 480V AC
