Shop DAYTON

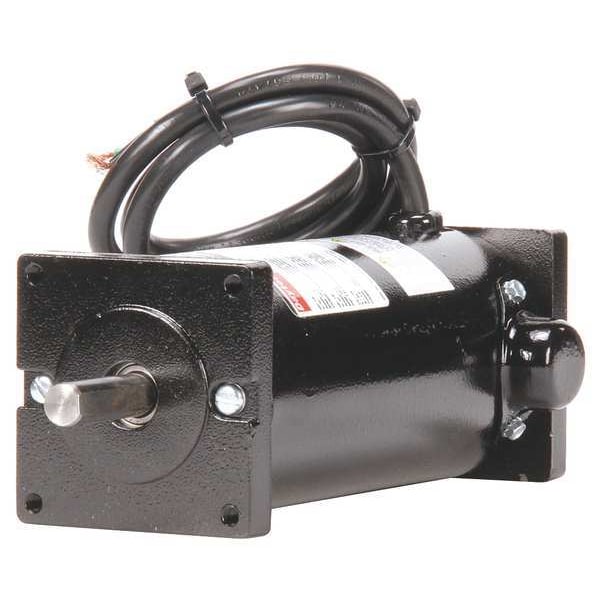

DC Motor, PM, TENV, 1/6 HP, 1800 rpm, 90VDC

  • Mfr # 4Z528

  • Zoro # G1312656

product price:
$
292.99
/ea
Free Shipping & Returns

Key Features

HP
1/6
Voltage
90V DC
Nameplate RPM
1,800 RPM
Shaft Dia.
1/2 in
Frame
Non-Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4Z528
Zoro #
G1312656
UPC #
-
Country of Origin
Mexico
Item
DC Permanent Magnet Motor
HP
1/6
Voltage
90V DC
Nameplate RPM
1,800 RPM
Frame
Non-Standard
Full Load Amps
1.72 A
RPM Range
1,701-1,800
Motor Thermal Protection
None
Standards
UL Recognized (E47479)
Base Mounting O.C.
7-7/16 x 2 in
Motor Design
Permanent Magnet
Rotation
CW/CCW
Face Mounting O.C.
2-5/8 x 2-5/8
Voltage Compatibility
90V DC
Bearings
Ball
Motor Application
General Purpose
RPM Group
1701-1800
Max. Ambient Temp.
40 Degrees C
Full Load Torque
5.6 in-lb
Brush Type
Carbon
Motor Enclosure Design
Totally Enclosed Nonventilated
Ins. Class
F
Motor Mounting Type
Face/Base
Mounting Stud Location
4/Bottom
Stud Quantity
4
Weight
5 1/2 lb
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
77.4 %
Removable Base
No
Duty Cycle
Continuous
Motor Service Factor
1
Extended Thru-Bolts
No
Motor Mounting Position
Universal
Replacement For
4Z528
Motor Shaft Design
Flat
Motor Frame Material
Steel
Capacitor Required
No
Frame Material
Steel
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor
1
Shaft Design
Flat
Application
General Purpose
Product Type
DC Motor
Bearing Type
Ball
Full Load Current
1.72 A
Mounting Stud Pattern
7-7/16 in x 2 in
Nameplate Voltage
90V DC
Manufacturers Warranty
1 yr

Description

DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1/6 HP, Nameplate RPM 1,800 RPM, Voltage 90V DC, 1.72 A Full Load Amps, Non-Standard Frame, Full Load Torque 5.6 in-lb, Replacement For 4Z528, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Motor Mounting Position Universal
