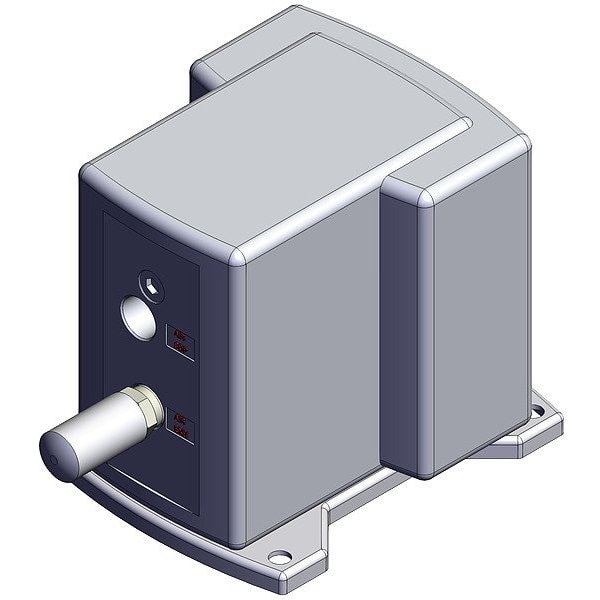

Process Pump, 3/8in NPT, PTFE, 20 lpm
- Mfr # PA3210-N03-N
- Zoro # G016332673
product price:Â
$
766.99
/ea
Free Shipping & Returns
Key Features
Valve Material
PTFE
Valve Type
Check
Air Consumption (Maximum)
200 lpm
Air Intake Connection Size
3/8 in
Air Intake Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PA3210-N03-N
- Zoro #
- G016332673
- UPC #
- -
- Country of Origin
- Japan
- Item
- Process Pump
- Valve Material
- PTFE
- Valve Type
- Check
- Air Consumption (Maximum)
- 200 lpm
- Air Intake Connection Type
- NPT
- Diaphragm Material
- PTFE
- Media Temperature (Maximum)
- 60 Degrees C
- Media Temperature (Minimum)
- 0 Degrees C
- Operating Pressure (Maximum)
- 0.7 MPa
- Standards
- RoHS Compliant
- Flow Rate (Maximum)
- 20 lpm
- Media Intake Connection Type
- NPT
- Duty Cycle
- Continuous
- Media Discharge Connection Type
- NPT
- Air Intake Pressure (Maximum)
- 0.7 MPa
- Priming
- Self-Priming
- Series
- PA
- Viscosity (Maximum)
- 1,000 cps
- Wetted Housing Material
- Stainless Steel
- Wetted Body Material
- Stainless Steel
- Diaphragm Base Material
- PTFE
Description
Process Pump, Air Consumption (Maximum) 200 lpm, Air Intake Connection Size 3/8 in, Air Intake Connection Type NPT, Diaphragm Material PTFE, Flow Rate (Maximum) 20 lpm, Media Discharge Connection Size 3/8 in, Media Discharge Connection Type NPT, Media Intake Connection Size 3/8 in, Media Intake Connection Type NPT, Media Temperature (Maximum) 60 Degrees C, Operating Pressure (Maximum) 0.7 MPa, Priming Self-Priming, Valve Material PTFE, Viscosity (Maximum) 1,000 cps
