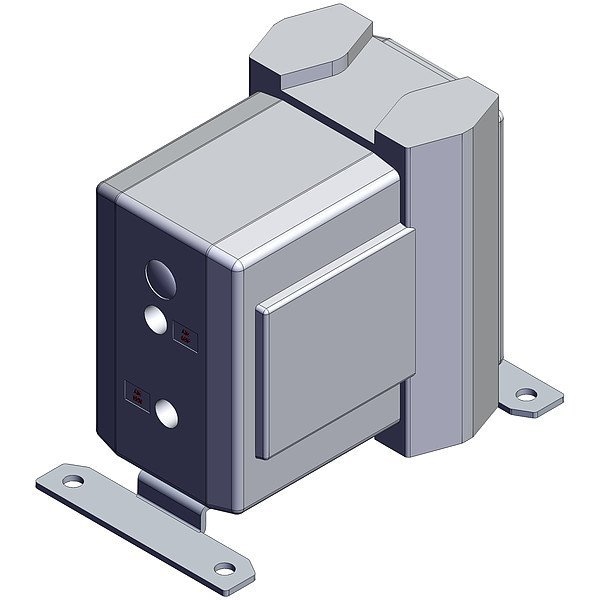

Process Pump, 3/4in NPT, PTFE, 45 lpm
Mfr # PA5010-N06
Zoro # G716332645
product price:Â
$
970.99
/ea
Free Shipping & Returns
Key Features
Valve Material
PTFE
Valve Type
Check
Air Consumption (Maximum)
300 lpm
Air Intake Connection Size
3/4 in
Air Intake Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PA5010-N06
- Zoro #
- G716332645
- UPC #
- -
- Country of Origin
- Japan
- Item
- Process Pump
- Valve Material
- PTFE
- Valve Type
- Check
- Air Consumption (Maximum)
- 300 lpm
- Air Intake Connection Type
- NPT
- Diaphragm Material
- PTFE
- Media Temperature (Maximum)
- 60 Degrees C
- Media Temperature (Minimum)
- 0 Degrees C
- Flow Rate (Maximum)
- 45 lpm
- Standards
- RoHS Compliant
- Duty Cycle
- Continuous
- Series
- PA
- Wetted Housing Material
- Polypropylene
- Media Discharge Connection Type
- NPT
- Priming
- Self-Priming
- Media Intake Connection Type
- NPT
- Air Intake Pressure (Maximum)
- 0.7 MPa
- Diaphragm Base Material
- PTFE
- Wetted Body Material
- Polypropylene
Description
Process Pump, Air Consumption (Maximum) 300 lpm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Diaphragm Material PTFE, Flow Rate (Maximum) 45 lpm, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPT, Media Intake Connection Size 3/4 in, Media Intake Connection Type NPT, Media Temperature (Maximum) 60 Degrees C, Priming Self-Priming, Valve Material PTFE, Wetted Housing Material Polypropylene, Standards RoHS, Valve Type Check, Duty Cycle Continuous
