Shop SMC

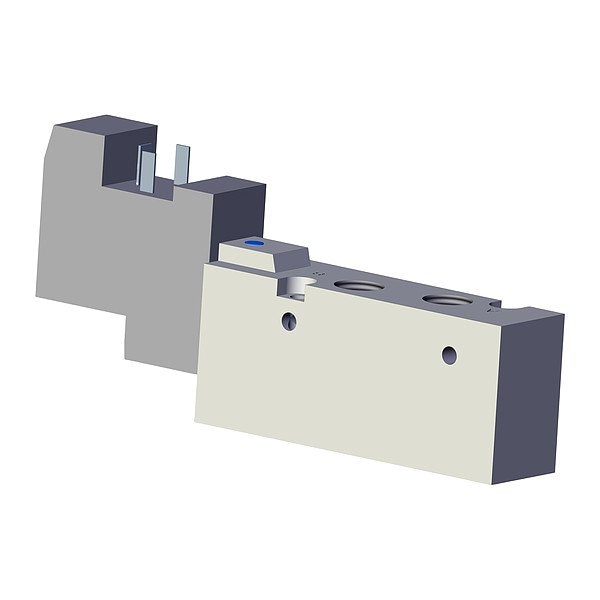

Solenoid Air Control Valve, 111 mm L

  • Mfr # SYJ7120-5YO-01F-Q

  • Zoro # G421915485

product price:  $74.99
/ea

Key Features

Number of Positions
Two-Position
Inlet Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Series
SYJ7000
Operating Temperature - Maximum
50 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ7120-5YO-01F-Q
Zoro #
G421915485
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
18 mm
Wire Rope Length
111 mm
Overall Height
65 mm
Overall Length
111 mm

Details

Number of Positions
Two-Position
Inlet Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Series
SYJ7000
Operating Temperature - Maximum
50 Degrees C
Override
Non-Locking
Response Time
30 msec
Exhaust Port Connection Gender
Female
Actuator Type
Single Solenoid
Voltage
24V DC
Operating Pressure - Maximum
0.7 MPa
Item
Solenoid Air Control Valve
Seal Material
Rubber
Includes Solenoid Coil
Solenoid Coil Included
Body Style
Body-Ported
Pilot Pressure
0.15 MPa
Operating Pressure - Minimum
0.1 MPa
Valve Action
Normally Closed
Body Features
Single
Electrical Connection Type
DIN Solenoid Connector
Number of Ports
5
Pilot Port Connection Gender
Female
Return Action
Spring Return
Number of Ways
Five-Way
Pilot Type
Internal Pilot
Operating Temperature - Minimum
-10 Degrees C
Body Material
Aluminum
Power Consumption
0.5 W
Coefficient of Volume (Cv)
0.63
Valve Type
Spool

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 65 mm, Overall Length 111 mm, Overall Width 18 mm
