Shop SMC

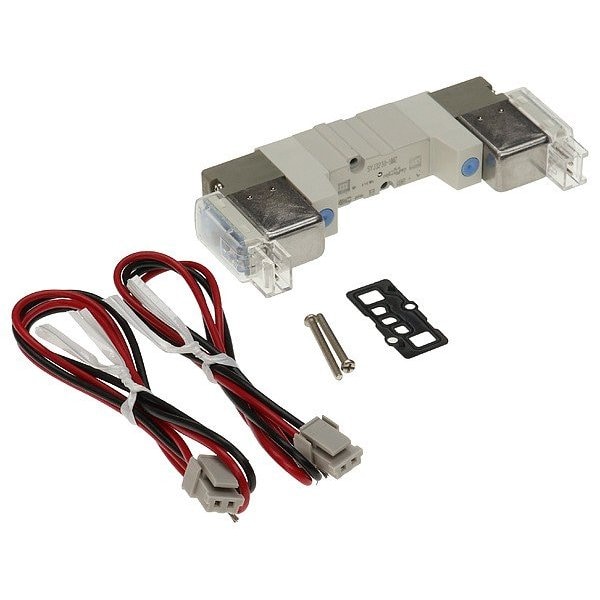

Solenoid Air Control Valve, 98 19/32 mm L

  • Mfr # SYJ3230-5MZ

  • Zoro # G521915460

product price:  $68.59
/ea

Key Features

Number of Ports
4
Electrical Connection Type
Plug-In
Inlet Port Connection Gender
Female
Valve Type
Spool
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3230-5MZ
Zoro #
G521915460
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
98 19/32 mm
Overall Width
11 mm
Overall Height
39 3/32 mm
Overall Length
98 19/32 mm

Details

Number of Ports
4
Electrical Connection Type
Plug-In
Inlet Port Connection Gender
Female
Valve Type
Spool
Number of Positions
Two-Position
Response Time
15 msec
Includes Solenoid Coil
Solenoid Coil Included
Valve Action
Normally Closed
Operating Pressure - Maximum
0.7 MPa
Pilot Type
Internal Pilot
Actuator Type
Double Solenoid
Body Material
Die Cast Zinc
Number of Ways
Five-Way
Override
Non-Locking
Operating Temperature - Maximum
50 Degrees C
Operating Temperature - Minimum
-10 Degrees C
Lubrication
Lubrication Not Required
Exhaust Port Connection Gender
Female
Voltage
24V DC
Item
Solenoid Air Control Valve
For Media
Air
Pilot Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Return Action
Pilot Return
Power Consumption
0.5 W
Series
SYJ3000
Body Style
Base-Mounted
Body Features
Double
Operating Pressure - Minimum
0.15 MPa
Coefficient of Volume (Cv)
0.12
Seal Material
Rubber
Pilot Pressure
0.1 MPa

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.1 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 98 19/32 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
