Shop SMC

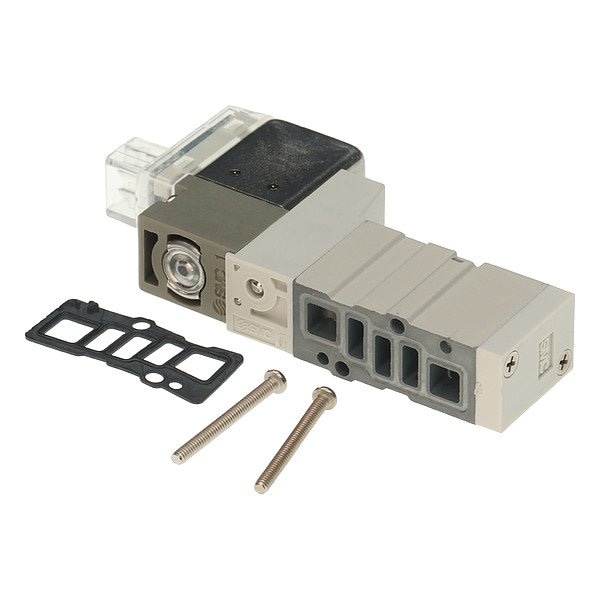

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3143-5LOZ
  • Zoro # G321915615
product price:
$
46.59
/ea

Key Features

Body Features
Single
Valve Type
Spool
Override
Non-Locking
Response Time
15 msec
Product Type
Solenoid Air Control Valve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3143-5LOZ
Zoro #
G321915615
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/32 mm
Wire Rope Length
64 5/16 mm
Overall Width
11 mm
Overall Length
64 5/16 mm
Length
64 5/16 mm

Details

Body Features
Single
Valve Type
Spool
Override
Non-Locking
Response Time
15 msec
Product Type
Solenoid Air Control Valve
Actuator Type
Single Solenoid
Valve Action
Normally Closed
For Media
Air
Pilot Pressure
0.15 MPa
Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Maximum
50 Degrees C
Seal Material
Rubber
Lubrication
Lubrication Not Required
Return Action
Spring Return
Inlet Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
Power Consumption
0.5 W
Body Material
Die Cast Zinc
Exhaust Port Connection Gender
Female
Operating Pressure - Minimum
0.15 MPa
Operating Temperature - Minimum
-10 Degrees C
Voltage
24V DC
Pilot Port Connection Gender
Female
Item
Solenoid Air Control Valve
Number of Ways
Five-Way
Series
SYJ3000
Pilot Type
Internal Pilot
Number of Ports
5
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Number of Positions
Two-Position
Body Style
Base-Mounted
Electrical Connection Type
Plug-In
Coefficient of Volume (Cv)
0.12

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
