Shop SMC

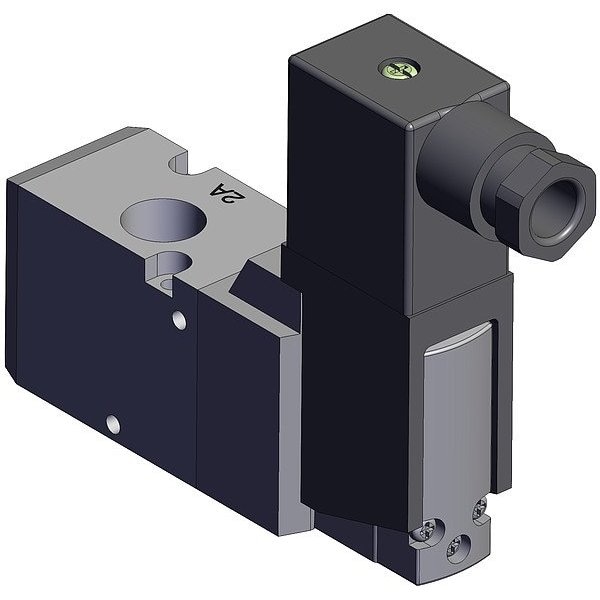

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP342-5DZ1-02A

  • Zoro # G421915331

product price:
$
74.19
/ea

Key Features

Valve Action
Normally Closed
Valve Type
Spool
Number of Positions
Two-Position
Wire Rope Length
113 mm
Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342-5DZ1-02A
Zoro #
G421915331
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
113 mm
Overall Height
83 mm
Overall Width
27 mm
Exhaust Port Connection Size
1/4
Inlet Port Connection Size
1/4
Overall Length
113 mm
Length
113 mm

Details

Valve Action
Normally Closed
Valve Type
Spool
Number of Positions
Two-Position
Voltage
24V DC
Body Features
Single
Response Time
38 msec
Override
Non-Locking
Power Consumption
0.55 W
Operating Temperature - Minimum
-10 Degrees C
Exhaust Port Connection Gender
Female
Operating Pressure - Maximum
0.7 MPa
Return Action
Spring Return
Series
VP300
Product Type
Solenoid Air Control Valve
Actuator Type
Single Solenoid
Number of Ways
Three-Way
Body Style
Body-Ported
Includes Solenoid Coil
Solenoid Coil Included
Electrical Connection Type
DIN Solenoid Connector
Operating Temperature - Maximum
50 Degrees C
Item
Solenoid Air Control Valve
Body Material
Aluminum
Number of Ports
3
Pilot Type
Internal Pilot
Pilot Pressure
0.2 MPa
Coefficient of Volume (Cv)
1
Operating Pressure - Minimum
0.2 MPa
Seal Material
Rubber
Pilot Port Connection Gender
Female
Exhaust Port Connection Type
BSPT
Inlet Port Connection Gender
Female
Inlet Port Connection Type
BSPT

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 83 mm, Overall Length 113 mm, Overall Width 27 mm
