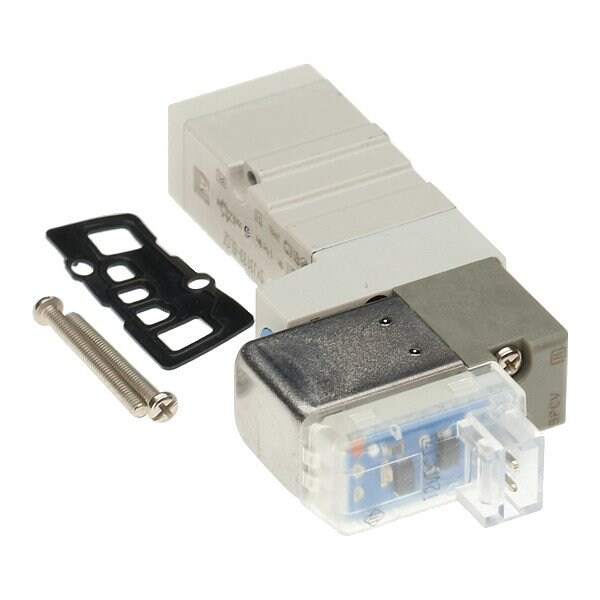

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3133-6LOZ

  • Zoro # G721915642

product price:
$
47.15
/ea

Key Features

Operating Temperature - Maximum
50 Degrees C
Wire Rope Length
64 5/16 mm
Power Consumption
0.5 W
Seal Material
Rubber
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3133-6LOZ
Zoro #
G721915642
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
64 5/16 mm
Overall Height
39 3/32 mm
Overall Width
11 mm
Overall Length
64 5/16 mm
Length
64 5/16 mm

Details

Item
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Power Consumption
0.5 W
Seal Material
Rubber
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Body Features
Single
Number of Ways
Five-Way
Override
Non-Locking
Number of Ports
4
Operating Pressure - Maximum
0.7 MPa
Body Material
Die Cast Zinc
Series
SYJ3000
Pilot Port Connection Gender
Female
Pilot Type
Internal Pilot
Electrical Connection Type
Plug-In
Actuator Type
Single Solenoid
Number of Positions
Two-Position
Operating Temperature - Minimum
-10 Degrees C
Pilot Pressure
0.15 MPa
Exhaust Port Connection Gender
Female
Return Action
Spring Return
Lubrication
Lubrication Not Required
Body Style
Base-Mounted
For Media
Air
Coefficient of Volume (Cv)
0.12
Inlet Port Connection Gender
Female
Operating Pressure - Minimum
0.15 MPa
Response Time
15 msec
Includes Solenoid Coil
Solenoid Coil Included
Valve Type
Spool
Valve Action
Normally Closed
Voltage
12V DC
Product Type
Solenoid Air Control Valve

Description

Solenoid Air Control Valve, Voltage 12V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
