Shop SMC

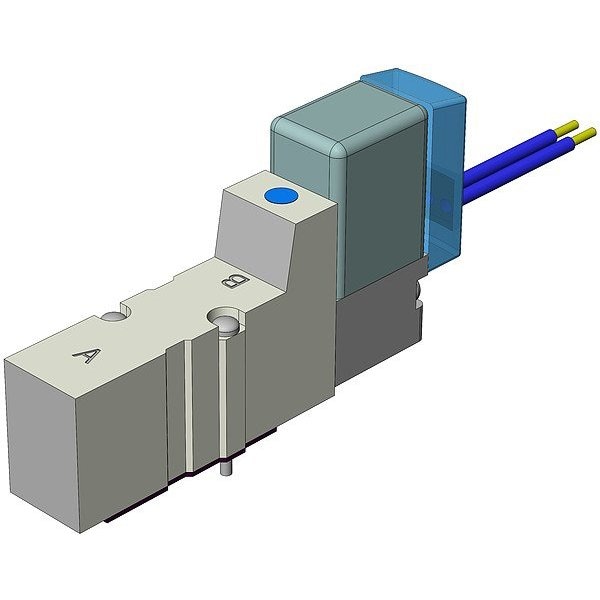

Solenoid Air Control Valve, 54 13/32 mm L

  • Mfr # SYJ3140-5G
  • Zoro # G421915478
product price:
$
49.89
/ea

Key Features

Operating Temperature - Maximum
50 Degrees C
Body Material
Die Cast Zinc
Return Action
Spring Return
Exhaust Port Connection Gender
Female
Operating Pressure - Minimum
0.15 MPa
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3140-5G
Zoro #
G421915478
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
54 13/32 mm
Overall Width
11 mm
Overall Height
39 3/32 mm
Overall Length
54 13/32 mm
Length
54 13/32 mm

Details

Operating Temperature - Maximum
50 Degrees C
Body Material
Die Cast Zinc
Item
Solenoid Air Control Valve
Return Action
Spring Return
Exhaust Port Connection Gender
Female
Operating Pressure - Minimum
0.15 MPa
Number of Ways
Five-Way
Operating Pressure - Maximum
0.7 MPa
Actuator Type
Single Solenoid
Pilot Pressure
0.15 MPa
Body Style
Base-Mounted
Override
Non-Locking
Seal Material
Rubber
Number of Ports
5
Inlet Port Connection Gender
Female
Power Consumption
0.5 W
Body Features
Single
Valve Type
Spool
Coefficient of Volume (Cv)
0.12
Pilot Port Connection Gender
Female
Voltage
24 VDC
Includes Solenoid Coil
Solenoid Coil Included
Series
SYJ3000
Pilot Type
Internal Pilot
Operating Temperature - Minimum
-10 Degrees C
Product Type
Solenoid Air Control Valve
Response Time
15 msec
Number of Positions
Two-Position
Valve Action
Normally Closed

Description

Solenoid Air Control Valve, Voltage 24 VDC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 54 13/32 mm, Overall Width 11 mm
