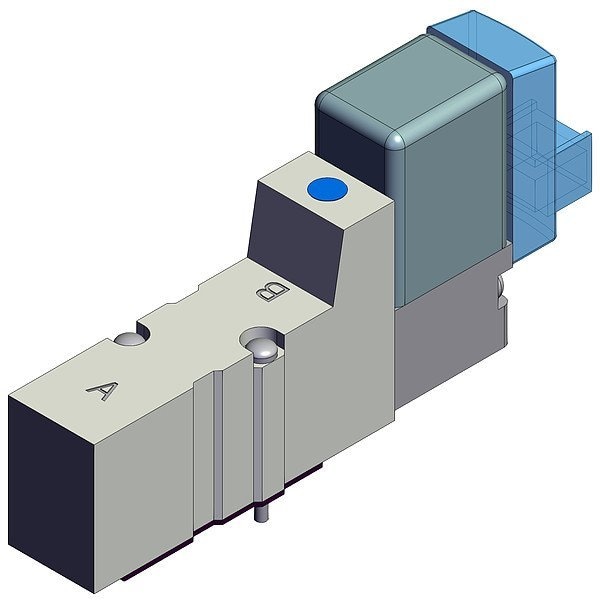

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3140-6LOZ
  • Zoro # G021915502
product price:
$
47.15
/ea

Key Features

Overall Width
11 mm
Number of Ports
5
Body Material
Die Cast Zinc
Override
Non-Locking
Operating Temperature - Minimum
-10 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3140-6LOZ
Zoro #
G021915502
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
11 mm
Wire Rope Length
64 5/16 mm
Overall Height
39 3/32 mm
Pilot Port Connection Size
M5
Overall Length
64 5/16 mm
Length
64 5/16 mm

Details

Number of Ports
5
Body Material
Die Cast Zinc
Override
Non-Locking
Operating Temperature - Minimum
-10 Degrees C
Valve Type
Spool
Seal Material
Rubber
Coefficient of Volume (Cv)
0.12
Power Consumption
0.5 W
Product Type
Solenoid Air Control Valve
Number of Ways
Five-Way
For Media
Air
Pilot Pressure
0.15 MPa
Includes Solenoid Coil
Solenoid Coil Included
Voltage
12V DC
Lubrication
Lubrication Not Required
Response Time
15 msec
Return Action
Spring Return
Inlet Port Connection Gender
Female
Number of Positions
Two-Position
Electrical Connection Type
Plug-In
Exhaust Port Connection Gender
Female
Operating Temperature - Maximum
50 Degrees C
Item
Solenoid Air Control Valve
Body Features
Single
Operating Pressure - Minimum
0.15 MPa
Valve Action
Normally Closed
Pilot Type
Internal Pilot
Body Style
Base-Mounted
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Actuator Type
Single Solenoid
Operating Pressure - Maximum
0.7 MPa
Series
SYJ3000
Pilot Port Connection Gender
Female

Description

Solenoid Air Control Valve, Voltage 12V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
