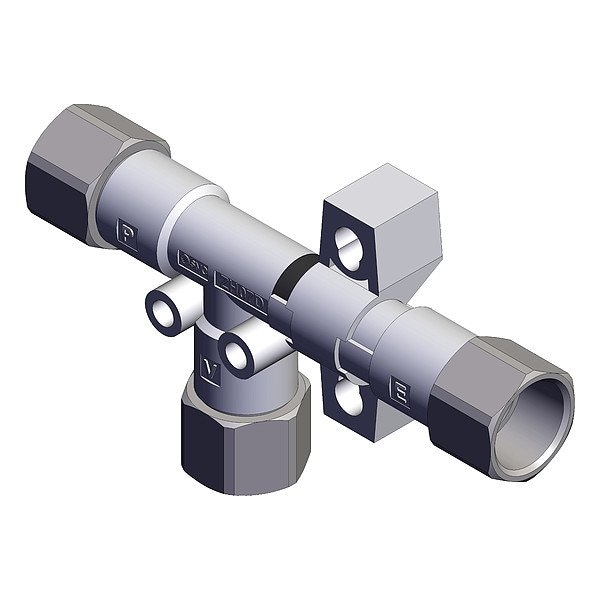

Vacuum Ejector, Body Ported
Mfr # ZH07DSA-N01-N01-N01
Zoro # G221915630
product price:Â
$
22.99
/ea
Key Features
Vacuum Port Gender
Female
Minimum Vacuum Pressure
0.1 MPa
Exhaust Port Type
NPT
Maximum Vacuum Pressure
0.6 MPa
Minimum Operating Temperature
-5 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZH07DSA-N01-N01-N01
- Zoro #
- G221915630
- UPC #
- -
- Country of Origin
- Japan
- Vacuum Port Gender
- Female
- Minimum Vacuum Pressure
- 0.1 MPa
- Exhaust Port Type
- NPT
- Maximum Vacuum Pressure
- 0.6 MPa
- Minimum Operating Temperature
- -5 Degrees C
- Minimum Supply Pressure
- 0.45 MPa
- Item
- Vacuum Ejector
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Flow Rate
- 28 lpm
- Pressure Port Type
- NPT
- Vacuum Port Type
- NPT
- Air Consumption
- 27 lpm
- Weight
- 5.2 g
- Number of Stages
- 1
- Maximum Supply Pressure
- 0.6 MPa
- Series
- ZH
- Pressure Port Gender
- Female
- Maximum Operating Temperature
- 50 Degrees C
Description
Item Vacuum Ejector, Air Consumption 27 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 1/8 in, Exhaust Port Type NPT, Includes Not Applicable, Maximum Flow Rate 28 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter .7, Number of Stages 1
