Shop All Desiccant Dryers
Speedaire

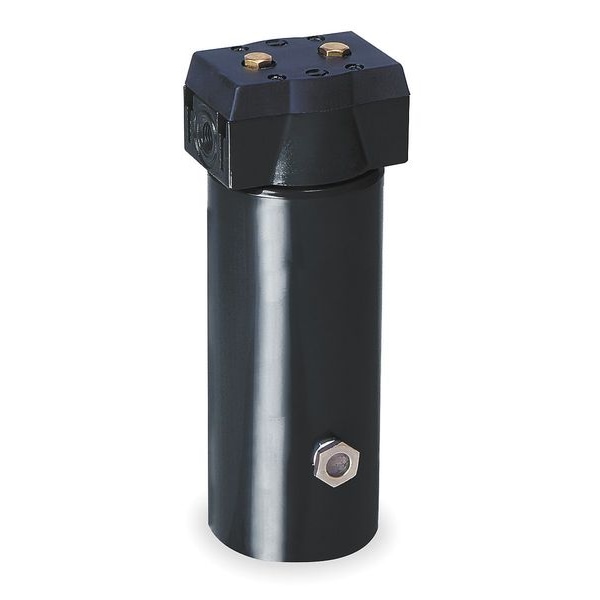

Dryer, Desiccant

product price: $1,203.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Total Capacity - Air Treatment 4,600 cu ft
  • Max. Flow - Air Treatment 10 cfm
  • Connection Size - Air Treatment 1/4 in NPT
  • Dew Point - Air Treatment -4 Degrees F
  • Max. Incoming Pressure - Air Treatment 175 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/4 in NPT
Width (In.) 4 1/8 in
Height (In.) 11 7/8 in
Bowl Size (Lb.) 2
Air Outlet Size 1/4 in
Outside Diameter 4 1/8 in
Overall Length 12 in
Overall Width 4 in
Air Inlet Size 1/4 in
Overall Height 4 in

Details

Item Desiccant Air Dryer
Total Capacity - Air Treatment 4,600 cu ft
Max. Flow - Air Treatment 10 cfm
Dew Point - Air Treatment -4 Degrees F
Max. Incoming Pressure - Air Treatment 175 psi
ISO Class - Air Treatment 3
Max. Operating Temp. (F) 125 Degrees F
CFM 10
(F)NPT Inlet (In.) 1/4
Bowl Rugged Metal
(M)NPT Outlet (In.) 1/4
Total Capacity (Cu.-Ft.) 4600
Max. Operating PSI 175
Desiccant Material Silica Gel
ISO Class 3
Max. SCFM @ 100 PSI 10
Application Dry Air, Paint Spray
Item - Desiccant Dryers Desiccant Air Dryer
Dew Point (Deg. F) -4
Inlet/Outlet NPTF (In.) 1/4
Drain Type Automatic
Number of Air Outlets 1
Housing Material Aluminum
Maximum Operating Pressure 200 psi
Total Air Capacity 4,600 cu ft
Minimum Operating Temperature 35 Degrees F
Dew Point -40 Degrees F
Bracket Kit Included No
Includes Modular Connection Kit
Filter Included No
Standards ISO
Filtered Substance Dirt, Dust, Oil, Water
Weight 15 lb
Maximum Flow Rate 10 cfm
Maximum Operating Temperature 125 Degrees F
Bowl Material Metal
Maximum Ambient Temperature 100 Degrees F
Body Material Aluminum
Air Inlet Gender Female
Maximum Flow @ 100 psi 10
Air Inlet Type NPT
Number of Air Inlets 1
Bowl Capacity 2 lb
Filter Rating 15 micron
Air Outlet Gender Female
Air Outlet Type NPT
Filter Element Compatibility HF5-12-4DPL
Drain Included Yes

Description

Desiccant Air Dryer, ISO Class 3, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 10 cfm, Overall Length 12 in, Overall Width 4 in, Maximum Flow @ 100 psi 10, Maximum Operating Pressure 200 psi, Minimum Operating Temperature 35 Degrees F, Dew Point -40 Degrees F, Filter Rating 15 micron, Filter Included No, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/4 in, Air Outlet Type NPT, Application Dry Air, Paint Spray, Body Material Aluminum, Bowl Capacity 2 lb
