  13. Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 277VAC 60Hz coil, NEMA 1

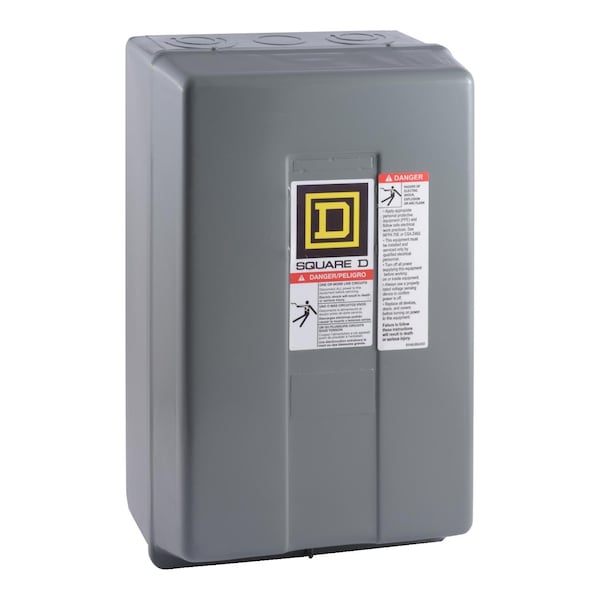

Square D Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 277VAC 60Hz coil, NEMA 1 8903LG1200V04 - main

Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 277VAC 60Hz coil, NEMA 1

  • Mfr # 8903LG1200V04

  • Zoro # G0847345

product price: $1,407.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
12
Coil Volts
600VAC
Enclosure NEMA Rating
NEMA 1
Full Load Amps
30
Height
12.69 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8903LG1200V04
Zoro #
G0847345
UPC #
785901116837
Country of Origin
Mexico

Dimensions

Height
12.69 in
Width
7.81 in
Depth
6.03 in

Details

Item
Lighting Contactor 600Vac 30A L
Number of Poles
12
Coil Volts
600VAC
Enclosure NEMA Rating
NEMA 1
Full Load Amps
30
Hz
60 Hz
Standards
UL Listed; CSA
Electrical Connections
Screw-clamp terminals
Indicator
No
Inrush VA
180-180 VA 60 Hz
Control Type
No control units
Features
Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Control Circuit
Separate control circuit
Current Rating
20-20 A tungsten; 30-30 A fluorescent
Range of Product
8903L
[Uc] Control Circuit Voltage
277 V AC 60 Hz
Local Signalling
no indicator
Hold-In Power Consumption In Va
35-35 VA 60 Hz
Product or Component Type
Electrically Held Lighting Contactor
Pvc Free
Yes
Line Rated Current
20-20 A tungsten, 30-30 A fluorescent
Nema Degree of Protection
NEMA 1 painted sheet steel surface
Poles Description
12P 12 NO

Description

Lighting Contactor 600Vac 30A L, Height 12.69 in, Width 7.81 in, Depth 6.03 in
