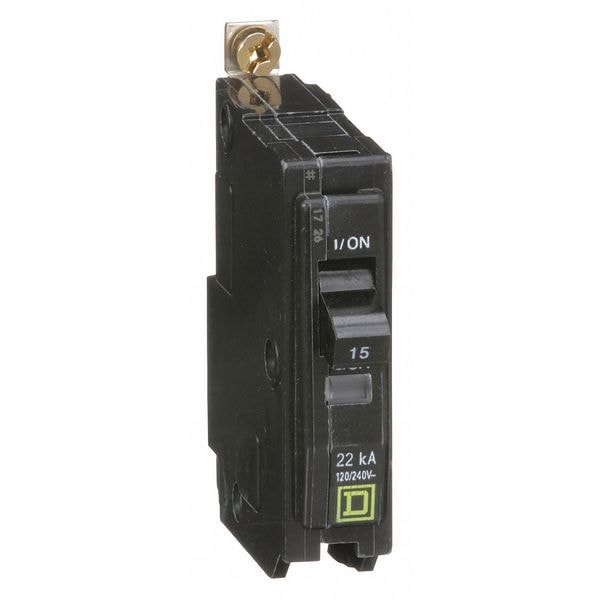

Miniature Circuit Breaker, QO Series, 15A, 1 Pole, 120/240V AC, 22kA at 120/240V AC
- Mfr # QOB115VH
- Zoro # G2957412
product price:Â
$
90.95
/ea
Key Features
Series
QO
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- QOB115VH
- Zoro #
- G2957412
- UPC #
- 785901371762
- Country of Origin
- United States
- Item
- Miniature Circuit Breaker
- Series
- QO
- Amps
- 15A
- Number of Poles
- 1
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Paddle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 22kA at 120/240V AC
- Trip Type
- Thermal Magnetic, Trip Free
- Instantaneous Trip
- Trip Free
- Terminal Connection
- Pressure Plate
- DC Voltage Rating
- Not Rated
- For Use With
- Square D NQOD Panelboards
- Standards
- UL Listed
- Interrupt Rating
- 22 kA at 120/240V AC
- Features
- Mercury Free
- Application
- HACR rated Applications
- Min. Operating Temp.
- 77 Degrees F
- Compatible Panelboard/Load Center Series
- QO
- Max. Operating Temp.
- 104 Degrees F
- Voltage
- 120VAC
Description
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOB, Max. AIR Rating 22kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Pressure Plate, Frame Size 100A/QO, Length 3 in, Width 0.8 in, Depth 2.9 in
