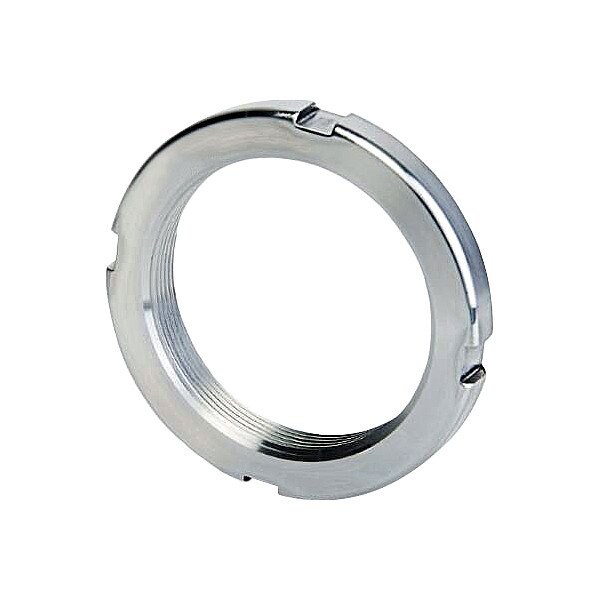

Bearing Lock Nut, Steel
Mfr # N10
Zoro # G122964263
product price:Â
$
6.99
/ea
Key Features
Face Diameter
2 7/16 in
Nut Material
Carbon Steel
Bore Thread Size
1.967"-18
System of Measurement
Inch
Bearing Face Maximum TIR
0.004 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- N10
- Zoro #
- G122964263
- UPC #
- -
- Country of Origin
- China
Dimensions
- Face Diameter
- 2 7/16 in
- Bore Thread Size
- 1.967"-18
- Screw Thread Size
- 1.967"-18
- Nut Width
- 1/2 in
- Locating Slot Width
- 0.24 in
- Bore Diameter
- 1.967 in
- Nut Outside Diameter
- 2 11/16 in
Details
- Nut Material
- Carbon Steel
- System of Measurement
- Inch
- Bearing Face Maximum TIR
- 0.004 in
- Nut Material Grade
- AISI 1000/1200
- Item
- Bearing Lock Nut
- Bore Type
- Threaded Bore
- For Use On
- Cams, Clutches, Gears, Pulleys, Sprockets
- Nut Material Finish
- Plain
- Compatible Lock Washer
- W10
- Chamfer Angle
- 50 Degrees
- Industry Number
- N10
- Standards
- ABEC, ABMA, ANSI Class 3, SAE
Description
Bearing Lock Nut, Industry Standard Size N10, Bore Thread Size 1.967 In.-18, Nut Outside Diameter 2 11/16 in, Face Diameter 2 7/16 in, Nut Width 1/2 in, Bearing Face Maximum TIR 0.004 in, Nut Material Carbon Steel, Nut Material Grade AISI 1000/1200, System of Measurement Inch, Nut Material Finish Plain, Chamfer Angle 50 Degrees , Compatible Lock Washer W10, For Use On Cams, Clutches, Gears, Pulleys, Sprockets, Locating Slot Width 0.24 in, Screw Thread Size 1.967 In.-18
