Shop STEELMAX

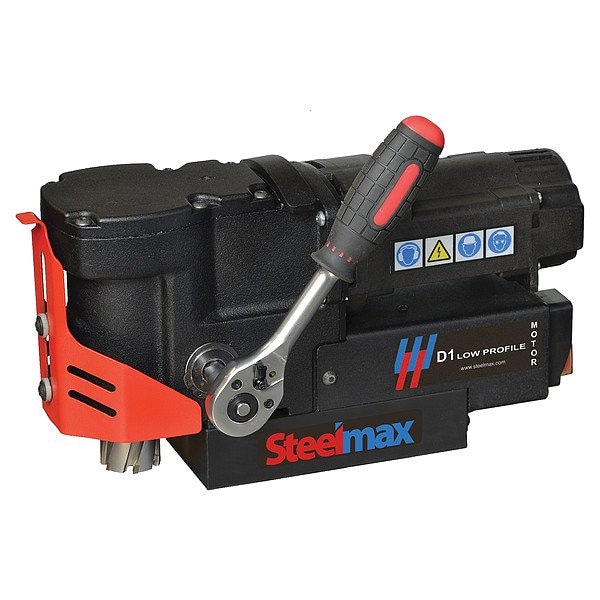

Drill Press, Weldon, 8 A, 350 RPM

  • Mfr # SM-D1-LP

  • Zoro # G310881716

product price:  $1,659.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Drill Travel
1 3/8 in
Drill Point Pressure
859 lb
Magnet Type
Electric
Overall Height
19 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SM-D1-LP
Zoro #
G310881716
UPC #
848118005735
Country of Origin
Poland

Dimensions

Overall Height
19 in
Overall Length
15 in
Overall Width
7 in
Cord Length
12 ft
Cutting Depth - Maximum
1 3/16 in
Wire Rope Length
15 in

Details

Item
Drill Press
Voltage
115V AC
Drill Travel
1 3/8 in
Drill Point Pressure
859 lb
Magnet Type
Electric
Tool Weight
27 lb
Reversible
Forward Only
Includes
drilling machine, plastic case, coolant bottle, safety strap, set of tools
Features
1-7/16 in (36 mm) Diameter x 1-3/16 in (30 mm) Depth of Cut with Annular Cutters, Accepts Weldon Shank Twist Drill Bits upto 1/2 in Diameter, Convenient Lifting Handle for Easy Transportation, Extremely Low Weight - only 21 lb (9.5 kg), Integrated Swarf Guard, Over 1-1/2 in Stroke (39 mm), Ultra Low Profile Mag Drill - only 7 in Tall - with Electromagnetic Base
Series
steelmax mag drill press
Power Source
Corded
Tool Style
Large
Minimum Working Speed
350 RPM
Tapping Compatible
Not Tapping Compatible
Chuck Style
Weldon
Maximum Working Speed
370 RPM
Magnetic Force
2,000 lbf
Coolant System
No
Maximum Core Bit Compatibility
1 3/8 in
Spindle Travel
1 3/8 in
Application
Holemaking
Drilling Capacity in Stainless Steel
1 7/16 in
Phase
Single-Phase
Number of Spindle Speeds
1
Maximum Spindle Speed
350 RPM
Base Type
Fixed
Power Down Feed Included
No
Number of Pieces
8
Plug Type
Three-Prong
Minimum Spindle Speed
350 RPM
Minimum Core Bit Compatibility
3/8 in
Variable Speed
No
Drilling Capacity in Steel
1 7/16 in
Current
8 A
Carbide Annular Cutter Capacity - Maximum
1 7/16 in
High Speed Steel Annular Cutter Capacity - Maximum
1 7/16 in
Tool Series
Steelmax Mag Drill Press
Power Source - TS Only
Corded

Description

Drill Press, Magnet Type Electric, Variable Speed No, Drilling Capacity in Steel 1 7/16 in, Drilling Capacity in Wood Not Applicable, Drilling Capacity in Cast Iron Not Applicable, Drill Travel 1 3/8 in, Maximum Spindle Speed 350 RPM, Minimum Spindle Speed 350 RPM, Current 8 A, Voltage 110 to 120/220 to 240V AC, Phase Single-Phase, Base Type Fixed, Spindle Taper Not Applicable, Chuck Size Not Applicable, Chuck Style Weldon, Drill Point Pressure 859 lb, Power Down Feed Included No
