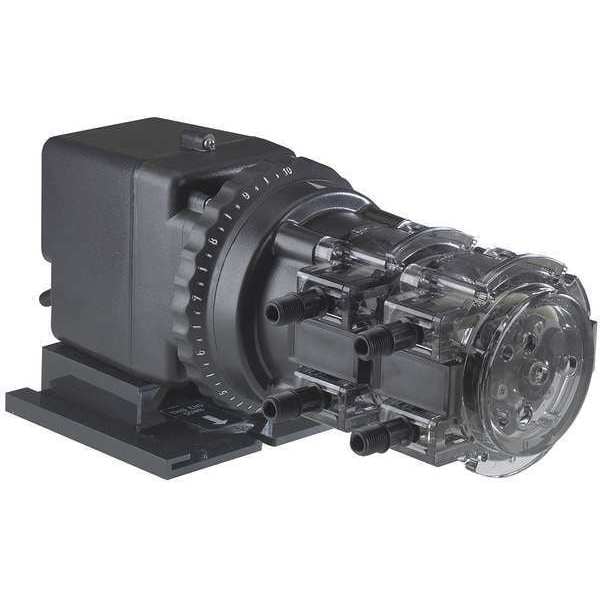

Peristaltic Dual Head Adj Rate 170JL5 170GPD 25Psi 1/4"W

Mfr # 170JL5A1STG1
Zoro # G1152024

$791.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Turn Down Ratio 20:1
Voltage - Pumps 115V AC
Features Adjustable Dual Head, Nonclogging Design, Valveless
Turn Down Ratio - Pumps 20:1
Motor RPM 44 RPM

See all product information

Brand Stenner
MFR # 170JL5A1STG1
Zoro # G1152024
Country of Origin United States
Category Peristaltic Pumps

Dimensions

Cord Length	6 ft
Height	6 in
Width	5 5/16 in
Length	12 3/4 in
Overall Width	5.3 in
Overall Height	6 in
Overall Length	12.7 in
Discharge Connection Size	1/4 in
Intake Connection Size	1/4 in

Details

Item	Chemical Metering Pump
Turn Down Ratio	20:1
Voltage - Pumps	115V AC
Features	Adjustable Dual Head, Nonclogging Design, Valveless
Turn Down Ratio - Pumps	20:1
Motor RPM	44 RPM
Suction Lift	25 ft
Voltage	115
Includes	Mounting Bracket, (2) 20 ft Rolls of Suction/Discharge Tubing, (2) Additional Latches, (2) Additional Pump Tubes, (2) Duckbill Check Valves, (2) Weighted Suction Line Strainers, (6) Connecting Nuts, (6) 1/4 in Ferrules
Flow Rate Output Control	Adjustable
Standards	cCSAus, CE Certified, cUSA, ETL Intertek Conforms to ANSI/NSF Std.50, UL Listed
Self-Priming	Yes
Body Material	Polycarbonate
Reproducibility - Pumps	+/-2.0%
Pump Type	Peristaltic
Phase - Pumps	1
Number of Feeds	Double Head
Head and Fitting Material	Polycarbonate
Head and Fitting Material - Pumps	Polycarbonate/Polypropylene/PVC
Motor HP	1/30
Chemical Metering Pump Type	Peristaltic
Max. Pressure - Pumps	25 psi
Tubing Material - Peristaltic Pumps	Santoprene
Tubing Material	Santoprene
HP - Pumps	1/30 hp
Max. Flow (GPD) - Pumps	170.00 gpd
Min. Flow Rate	8.5 gpd
Max. Flow (gpd) - Pumps	170.00 gpd
Max. Viscosity - Pumps	1,500 cps
Item - Chemical Metering Pumps	Chemical Metering Pump
Max. Flow Rate	170 gpd
Max. Pressure	25 psi
Max. Viscosity	1500 cps
Reproducibility	+/-2.0%
Housing Material	Polycarbonate
Roller Material	Polyethylene
Electrical Connection Type	Plug-In
Intake Connection Type	Tube
Media Temperature (Maximum)	125 Degrees F
Motor Speed (Maximum)	44 RPM
Control Programs	Manual Control
Head Material	Polyethylene, Polypropylene
Nameplate Voltage	120V AC
Motor Type	Shaded Pole
Flow Rate (Maximum)	170 gpd
Frequency	60 Hz
Degassing Valve Included	No
Ambient Temperature (Maximum)	125 Degrees F
Horsepower (Maximum)	1/30 hp
Priming	Self-Priming
Discharge Connection Type	Tube
Flow Rate (Minimum)	8.5 gpd
Pressure (Maximum)	25 psi
Phase	Single
Viscosity (Maximum)	1,500 cps
Chemical Compatibility	Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water
Duty Cycle	Continuous
Media Temperature (Minimum)	32 Degrees F
Fitting Material	Polypropylene, PVC

Description

Chemical Metering Pump

Replacement Parts

Stenner Index Pin Assembly W/lifter

product price: $77.59
/ea
Stenner Switch Boot

original price: $10.57

49% off

new price: $5.39
/ea
Stenner Variable Cam PK2

original price: $40.66

40% off

new price: $24.15
Stenner Main Shaft-double head adjustable output

product price: $38.59
/ea
Stenner Motor Shaft W/gear-adj.

product price: $22.65
/ea
Stenner Injection Fitting W/nut & Ferrule 1/4in

product price: $12.75
/ea
Stenner Ferrules, 1/4 In, PK24

original price: $27.08

12% off

new price: $23.79
Stenner Coil 120vac 60hz

product price: $69.29
/ea
Stenner Rotor Assembly

original price: $85.13

9% off

new price: $77.15
/ea
Stenner Gear Motor 120vac 60hz - Series 85

product price: $304.99
/ea
Stenner Frc Screw A

product price: $0.49
/ea
Stenner Tube Housing Cover

product price: $45.19
/ea
Stenner Ferrule, 1/4in, PK10

product price: $14.89
Stenner No. 5 Pump Head Service Kit-25psi

product price: $64.19
/ea
Stenner Pressure Spring

product price: $4.29
/ea
Stenner Motor Service Kit 120V/60Hz

product price: $133.99
/ea
Stenner Gear Case Cover

product price: $42.19
/ea
Stenner Mounting Bracket

product price: $18.99
/ea
Stenner Dial Ring

original price: $14.87

18% off

new price: $12.15
/ea
Stenner Suctn/Dischrg Tubing, 20ftx1/4inUVBlack

original price: $15.09

5% off

new price: $14.29
/ea
