PeristalticChemMeteringPump, 17gpd, 100psi

  • Mfr # S3002

  • Zoro # G016557403

product price:  $1,526.99
/ea
Free Shipping & Returns

Key Features

Electrical Connection Type
Plug-In
Includes
20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Reproducibility
+/-2.0%
Flow Rate (Maximum)
17 gpd
Housing Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S3002
Zoro #
G016557403
UPC #
840034754384
Country of Origin
United States

Dimensions

Overall Height
7 in
Overall Width
10.9 in
Overall Length
6.4 in
Cord Length
6 ft
Discharge Connection Size
3/8 in
Manufacturers Warranty Length
2 yr
Intake Connection Size
1/4 in

Details

Item

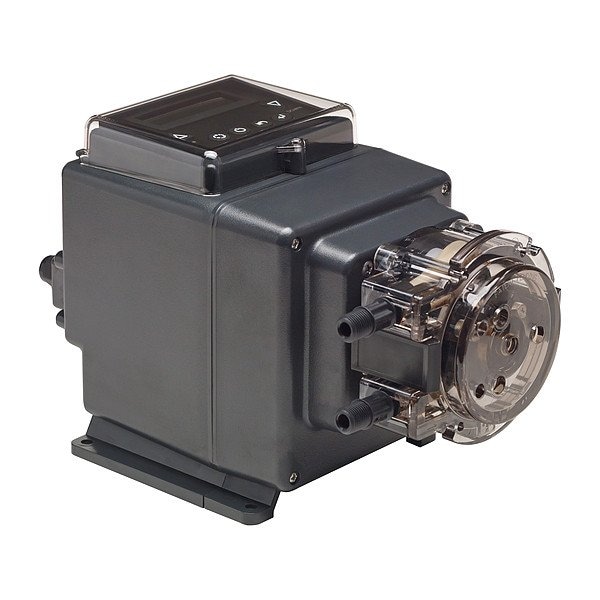

Peristaltic Chemical Metering Pump
Electrical Connection Type
Plug-In
Includes
20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Reproducibility
+/-2.0%
Flow Rate (Maximum)
17 gpd
Housing Material
Polycarbonate
Tubing Material
Santoprene
Duty Cycle
Continuous
Priming
Self-Priming
Pressure (Maximum)
100 psi
Horsepower (Maximum)
1/16 hp
Head Material
Polycarbonate/Santoprene
Motor Mounting Type
Horizontal, Vertical
Degassing Valve Included
No
Motor Thermal Protection
Auto
Media Temperature (Minimum)
32 Degrees F
Flow Rate (Minimum)
0.17 gpd
Frequency
60 Hz
Seal Material
Santoprene
Standards
CE, cULus, NSF/ANSI 50, NSF/ANSI 372, NSF/ANSI 61
Phase
Single
Seal Type
O-Ring
Control Programs
4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control
Media Temperature (Maximum)
104 Degrees F
Viscosity (Maximum)
1,500 cps
Ambient Temperature (Maximum)
104 Degrees F
Discharge Connection Type
NPT
Pump Technology
Peristaltic
Roller Material
Polyethylene
Flow Rate Output Control
Variable
Intake Connection Type
NPT
Number of Feeds
1
Turn Down Ratio
100:1
Fitting Material
Polypropylene/PVC
Motor Enclosure Design
Totally Enclosed
Nameplate Voltage
120V AC

Description

Peristaltic Chemical Metering Pump, Control Programs 4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 17 gpd, Flow Rate (Minimum) 0.17 gpd, Horsepower (Maximum) 1/16 hp, Intake Connection Size 1/4 in, Intake Connection Type NPT, Media Temperature (Maximum) 104 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC, Number of Feeds 1
