Shop STENNER

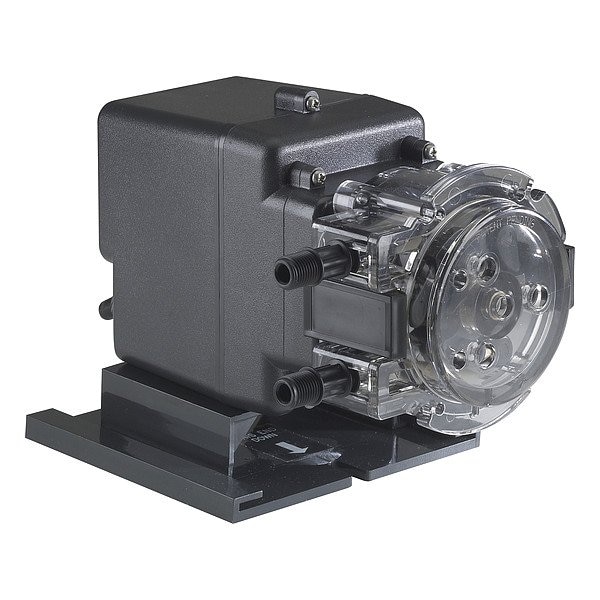

PeristalticChemMeteringPump, 3gpd, 100psi

  • Mfr # 45MPHP2

  • Zoro # G016557458

product price:  $431.99
/ea
Free Shipping & Returns

Key Features

Overall Height
6 in
Motor Enclosure Design
Open Fan Cooled
Flow Rate Output Control
Fixed
Roller Material
Polyethylene
Media Temperature (Minimum)
32 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
45MPHP2
Zoro #
G016557458
UPC #
840034704099
Country of Origin
United States

Dimensions

Overall Height
6 in
Overall Length
5.3 in
Overall Width
8 in
Cord Length
6 ft
Discharge Connection Size
3/8 in
Manufacturers Warranty Length
2 yr
Intake Connection Size
1/4 in

Details

Item
Peristaltic Chemical Metering Pump
Motor Enclosure Design
Open Fan Cooled
Flow Rate Output Control
Fixed
Roller Material
Polyethylene
Media Temperature (Minimum)
32 Degrees F
Motor Thermal Protection
Auto
Discharge Connection Type
NPT
Turn Down Ratio
20:1
Electrical Connection Type
Plug-In
Flow Rate (Maximum)
3 gpd
Housing Material
Polycarbonate
Duty Cycle
Continuous
Degassing Valve Included
No
Motor Mounting Type
Horizontal, Vertical
Media Temperature (Maximum)
125 Degrees F
Viscosity (Maximum)
1,500 cps
Horsepower (Maximum)
1/30 hp
Includes
20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Standards
cCSAus, CE, cULus, NSF/ANSI 50, NSF/ANSI 372, NSF/ANSI 61
Reproducibility
+/-2.0%
Head Material
Polycarbonate/Santoprene
Intake Connection Type
NPT
Pump Technology
Peristaltic
Fitting Material
Polypropylene/PVC
Tubing Material
Santoprene
Ambient Temperature (Maximum)
125 Degrees F
Nameplate Voltage
220V AC
Seal Type
Sealless
Seal Material
Santoprene
Pressure (Maximum)
100 psi
Frequency
60 Hz
Phase
Single
Number of Feeds
1

Description

Peristaltic Chemical Metering Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 3 gpd, Flow Rate (Minimum) Not Applicable, Horsepower (Maximum) 1/30 hp, Intake Connection Size 1/4 in, Intake Connection Type NPT, Media Temperature (Maximum) 125 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 220V AC, Number of Feeds 1, Pressure (Maximum) 100 psi, Reproducibility +/-2.0 Percent, Tubing Material Santoprene, Turn Down Ratio 20:1

Restrictions

WARNING: This product can expose you to chemicals including Soots, tars, and mineral oils, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
