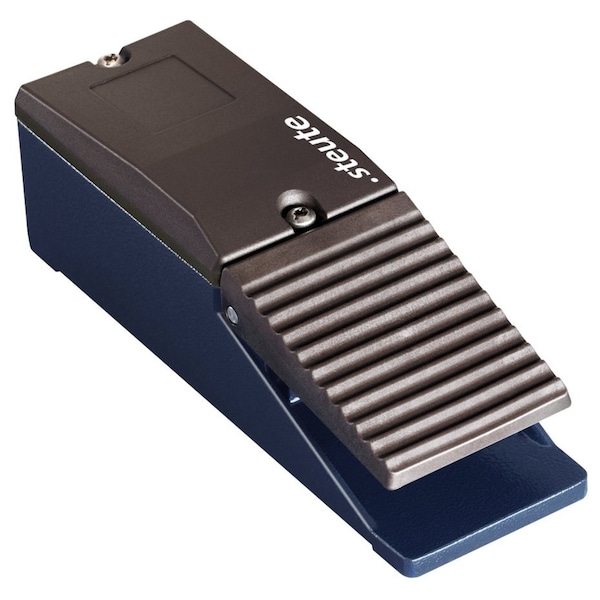

GF 1O/1S RE - Foot Switch with 1NC / 1NO contacts, Maintained Action (latching)
Mfr # 1048462
Zoro # G822964921
product price: $218.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
400 VAC
Color
Blue/Black
Material
Aluminium Die-Cast, Thermoplastic
Width
70 mm
Depth
36 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1048462
- Zoro #
- G822964921
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 70 mm
- Depth
- 36 mm
- Length
- 63 mm
- Height
- 220 mm
Details
- Item
- Foot switch with metal enclosure
- Voltage Rating
- 400 VAC
- Color
- Blue/Black
- Material
- Aluminium Die-Cast, Thermoplastic
- Mechanical Life
- > 1 million operations
- Standards
- EN 60947-5-1
- Application
- Foot-operated switch for industrial machines, plants and devices; ON/OFF latching principle; no protective shield
- Operating Temperature
- –25 °C to +80 °C
- Switch Insert
- 1 x ES 60 GF RE
- Finish
- Powder-coated (aluminium enclosure)
- Short-circuit protection
- 16 A gG/gN fuse
- IP Rating
- IP65 (IEC/EN 60529)
- Switching Elements
- 1 NC/1 NO contact with latching
- Utilisation category
- AC-15
Description
The GF 1O/1S RE is a general‐purpose industrial foot switch with latching principle (OnN/OFF).It features a durable aluminum die-cast enclosure, thermoplastic cover and a slip‐resistant pedal, providing IP40 protection for indoor environments. The switch uses slow‐action positive break contacts (1 NC / 1 NO) suitable for auxiliary machine control functions. The protective hood enhances operator safety by shielding the pedal from unintended activation. Mechanical endurance exceeds 1 million cycles, making it suitable for assembly lines, testing stations, and light‐industrial equipment. The compact footprint and stable base support flexible installation in operator work areas.
