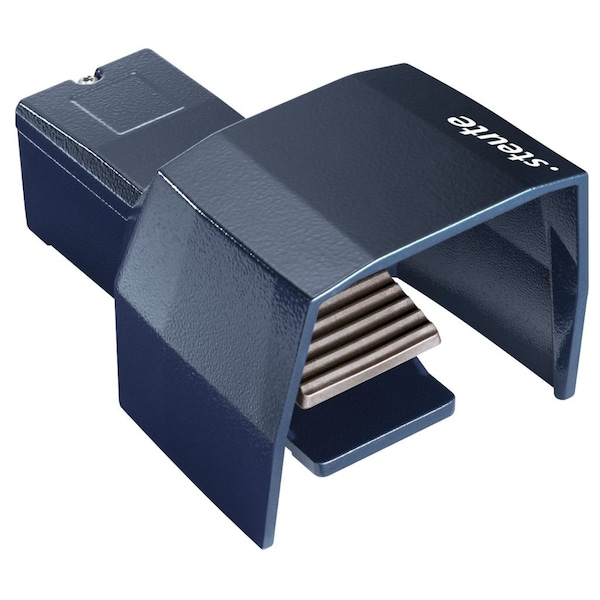

GFS 1O/1S - Foot Switch with 1NC / 1NO contacts, Momentary Action, with shroud
Mfr # 1048579
Zoro # G023330389
product price:Â
$
181.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
400 VAC
Color
Blue/Black
Material
Aluminium Die-Cast, Thermoplastic
Width
156 mm
Depth
72 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1048579
- Zoro #
- G023330389
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 156 mm
- Depth
- 72 mm
- Length
- 138 mm
- Height
- 265 mm
Details
- Item
- Foot switch with metal enclosure
- Voltage Rating
- 400 VAC
- Color
- Blue/Black
- Material
- Aluminium Die-Cast, Thermoplastic
- Switching Elements
- 1 NC/1 NO contact, type Zb
- Short-circuit protection
- 16 A gG/gN fuse
- Switch Insert
- 1 x ES 60 GF
- Application
- Foot-operated switch for industrial machines, plants and devices where manual operation is not possible; with protective shield against unintentional actuation
- Mechanical Life
- > 1 million operations
- Finish
- Powder-coated (aluminium enclosure and shield)
- Standards
- EN 60947-5-1
- Utilisation category
- AC-15
- IP Rating
- IP65 (IEC/EN 60529)
- Operating Temperature
- –25 °C to +80 °C
Description
The GFS 1O/1S is a guarded industrial foot switch designed for environments requiring enhanced operator protection. It features a durable aluminum die-cast enclosure, thermoplastic cover with an integrated protective shield and provides IP65 protection. The switch uses slow action, positive break contacts (1 NC / 1 NO), making it suitable for safety related or control reliable applications depending on system design. The pedal is slip resistant and shaped for comfortable operation with industrial footwear. Mechanical life exceeds 1 million cycles. Typical applications include machine tools, production equipment, material handling systems, and operator control stations requiring guarded foot actuated inputs.
