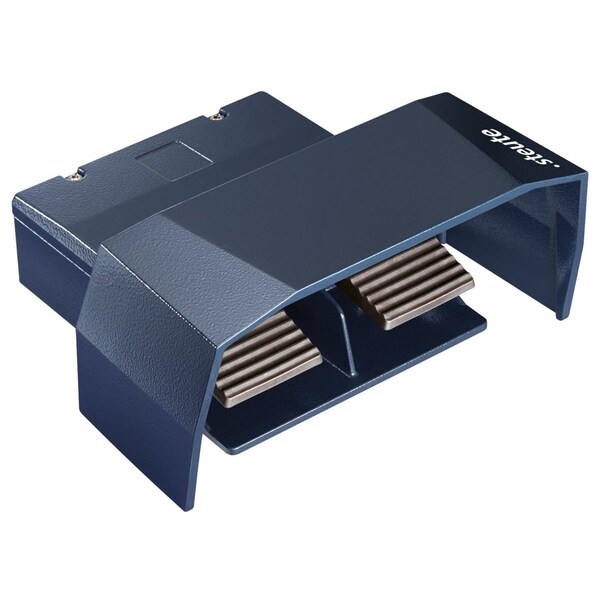

GFS 2 1OS/1OS - Two Pedal Foot Switch, each with 1NC / 1NO contacts, momentary action, with shroud
Mfr # 1048842
Zoro # G523330391
product price:Â
$
407.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
400 VAC
Color
Blue/Black
Material
Aluminium Die-Cast, Thermoplastic
Width
284 mm
Depth
72 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1048842
- Zoro #
- G523330391
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 284 mm
- Depth
- 72 mm
- Length
- 140 mm
- Height
- 267 mm
Details
- Item
- Foot switch with metal enclosure
- Voltage Rating
- 400 VAC
- Color
- Blue/Black
- Material
- Aluminium Die-Cast, Thermoplastic
- Application
- 2-pedal foot-operated switch for industrial machines and plants
- Standards
- EN 60947-5-1
- Finish
- Powder-coated (aluminium enclosure and shield)
- Switching Elements
- 1 NC/1 NO contact, type Zb
- Operating Temperature
- –25 °C to +80 °C
- Short-circuit protection
- 16 A gG/gN fuse
- IP Rating
- IP65 (IEC/EN 60529)
- Switch Insert
- 1 x ES 60 GF per pedal
- Utilisation category
- AC-15
- Mechanical Life
- > 1 million operations
Description
The GFS 2 1OS/1OS is a dual pedal foot switch with an integrated shroud designed for industrial environments where protected actuation is preferred. The enclosure is aluminum die-cast, the enclosure and protective shroud are made of reinforced thermoplastic, providing impact resistance and shielding the pedals from accidental activation. Each pedal is constructed from reinforced thermoplastic with a slip resistant surface. The unit offers IP65 protection against dust and water jets. Both pedals use slow action contacts (1 NC / 1 NC), providing two independent normally closed switching functions. Mechanical life exceeds 1 million cycles per pedal. Suitable for machine tools, production lines, and operator stations requiring dual guarded foot operated inputs.
