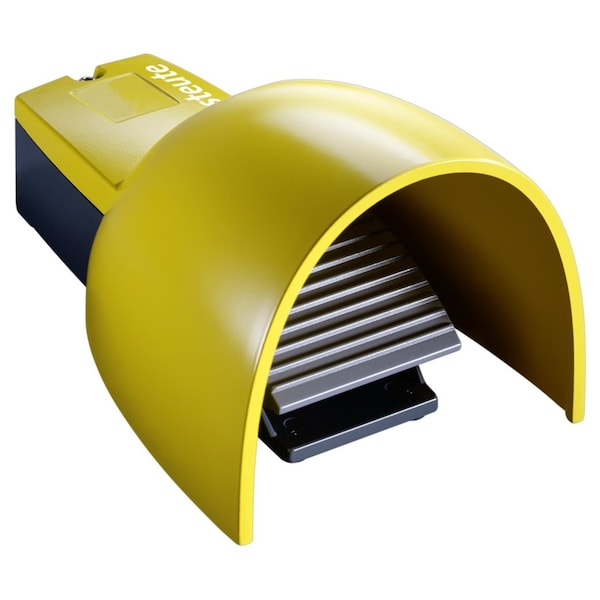

GFSI 1O/1S -40 degrees celsius ... +90 degrees celsius Extreme - Foot Switch, 1NC / NO contacts
Mfr # 1318331
Zoro # G623330383
product price:Â
$
641.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
16 A/400 VAC
Color
Orange/Black
Material
Aluminium Die-Cast
Width
172 mm
Depth
68 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1318331
- Zoro #
- G623330383
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 172 mm
- Depth
- 68 mm
- Length
- 150 mm
- Height
- 265 mm
Details
- Item
- Foot switch with metal enclosure
- Voltage Rating
- 16 A/400 VAC
- Color
- Orange/Black
- Material
- Aluminium Die-Cast
- Utilisation category
- AC-15
- Finish
- Powder-coated, passivated (corrosion-resistant)
- Standards
- EN 60947-5-1
- Mechanical Life
- > 1 million operations
- Switch Insert
- 1 x ES 60 GF
- IP Rating
- IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653) depending on selected cable gland
- Application
- Foot-operated switch for industrial machines, plants and devices where manual operation is not possible or encouraged
- Operating Temperature
- –40 °C to +90 °C
- Switching Elements
- 1 NC/1 NO contact, type Zb
- Short-circuit protection
- 16 A gG/gN fuse
Description
The GFSI 1O/1S Extreme is a rugged safety foot switch designed for harsh industrial environments requiring reliable operator activated control. It features a corrosion resistant enclosure with an integrated protective shield and is engineered for extreme temperature ranges from -40 degrees farenheit to +194 degrees farenheit (-40 degrees celsius to +90 degrees celsius). The switch provides IP69 protection, allowing operation in high pressure washdown areas and environments with heavy contamination. It uses slow action, positive break contacts (1 NC / 1 NO) for safety related control functions. The large, slip resistant pedal enables secure actuation even when operators wear protective footwear. Mechanical durability exceeds 1 million switching cycles. Suitable for food processing, outdoor machinery, heavy duty manufacturing, and applications requiring high ingress protection and wide temperature tolerance.
