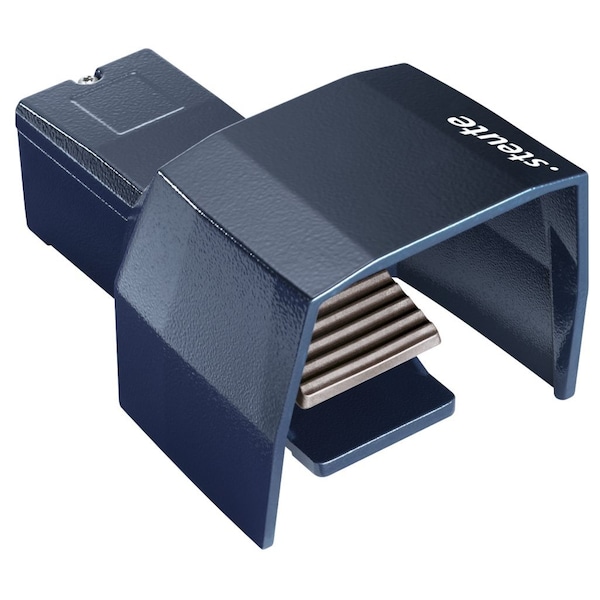

GFS 2O/2S - Foot Switch with 2NC / 2NO contacts, Momentary Action, with shroud
Mfr # 1048655
Zoro # G723330382
product price:Â $215.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
400 VAC
Color
Blue/Black
Material
Aluminium Die-Cast, Thermoplastic
Width
156 mm
Depth
72 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1048655
- Zoro #
- G723330382
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 156 mm
- Depth
- 72 mm
- Length
- 138 mm
- Height
- 265 mm
Details
- Item
- Foot switch with metal enclosure
- Voltage Rating
- 400 VAC
- Color
- Blue/Black
- Material
- Aluminium Die-Cast, Thermoplastic
- Finish
- Powder-coated (aluminium enclosure and shield)
- Switching Elements
- 2 NC/2 NO contacts, type Zb
- Operating Temperature
- –25 °C to +80 °C
- Switch Insert
- 2 x ES 40 GF
- Utilisation category
- AC-15
- Mechanical Life
- > 1 million operations
- Standards
- EN 60947-5-1
- Short-circuit protection
- 6 A gG/gN fuse
- IP Rating
- IP65 (IEC/EN 60529)
- Application
- Foot-operated switch for industrial machines and plants; 2 independent switch inserts for dual-circuit switching
Description
The GFS 2O/2S is a shrouded industrial foot switch designed for applications requiring multiple contact outputs. Its aluminimu die-cast enclosure, cover and integrated shroud constructed from reinforced thermoplastic, offer durability and resistance to mechanical stress. The pedal is made of reinforced thermoplastic with a textured, slip resistant surface for reliable operation. The unit provides IP65 protection against dust and water jets. It features slow action positive break contacts (2 NC / 2 NO), supporting equipment that requires multiple switching signals from a single foot actuated device. Mechanical life exceeds 1 million cycles. Suitable for machine tools, production equipment, and operator control stations requiring a guarded foot switch with multiple contact sets.
