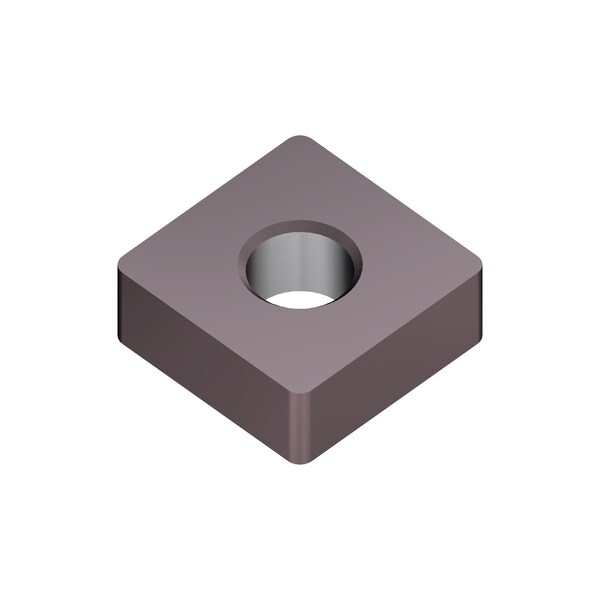

SNGA432 Grade AC503U Carbide Turning Insert
Mfr # 10JJ332
Zoro # G308977018
product price:Â $19.49
/ea
Sold in multiples of 10 for $194.90
Key Features
Mounting Style
Pin and Clamp
Mounting Hole Dia.
5.16 mm
ISO Number
SNGA120408
Tolerance Class
G
Insert Style
SNGA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
10JJ332
Zoro #
G308977018
UPC #
-
Country of Origin
Japan
Dimensions
Mounting Hole Dia.
5.16 mm
Insert Thickness
0.1874 in
Insert Size
1/2 in
Nose Radius
0.0315 in
Details
Item
Turning Insert
Mounting Style
Pin and Clamp
ISO Number
SNGA120408
Tolerance Class
G
Insert Style
SNGA
Relief Angle
0 Degrees
Grade
AC503U
Rake
Negative
Coating Process
PVD
Workpiece Compatibility
Hardened Steel
Series
AC503U
Included Angle
90 Degrees
Coating
Super ZX Coat
ANSI Number
SNGA432-AC503U
Insert Material
Carbide
Material Application ISO Code
H05
Inscribed Circle
1/2 in
Description
