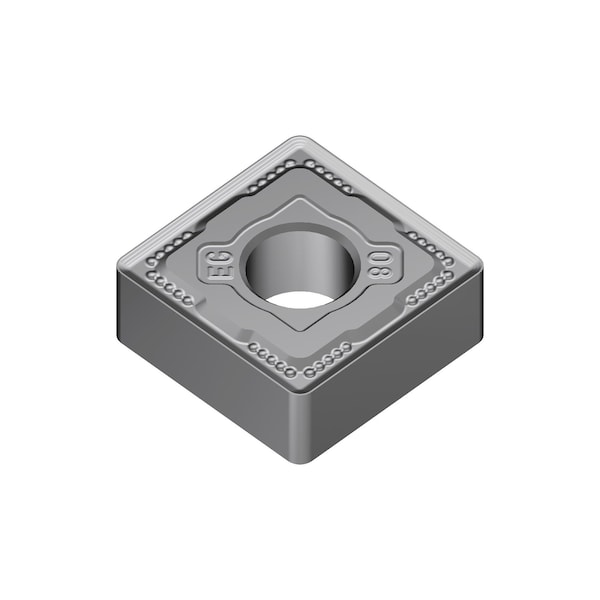

SNMG542EEG Grade AC8015P Carbide Turning Insert
Mfr # 19T4CSR
Zoro # G208977620
product price:Â $26.29
/ea
Sold in multiples of 10 for $262.90
Key Features
ANSI Number
SNMG542EEG-AC8015P
ISO Number
SNMG150608N-EG
Chip-Breaker
Yes
Mounting Style
Pin and Clamp
Insert Thickness
1/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
19T4CSR
Zoro #
G208977620
UPC #
-
Country of Origin
Japan
Dimensions
Insert Thickness
1/4 in
Mounting Hole Dia.
6.35 mm
Nose Radius
0.0315 in
Insert Size
5/8 in
Details
ANSI Number
SNMG542EEG-AC8015P
ISO Number
SNMG150608N-EG
Chip-Breaker
Yes
Mounting Style
Pin and Clamp
Rake
Negative
Relief Angle
0 Degrees
Grade
AC8015P
Workpiece Compatibility
Steel
Material Application ISO Code
P15, P20
Included Angle
90 Degrees
Insert Style
SNMG
Coating
Absotech
Inscribed Circle
5/8 in
Tolerance Class
M
Series
AC8000P
Coating Process
CVD
Insert Material
Carbide
Item
Turning Insert
Description
