Shop SUMITOMO

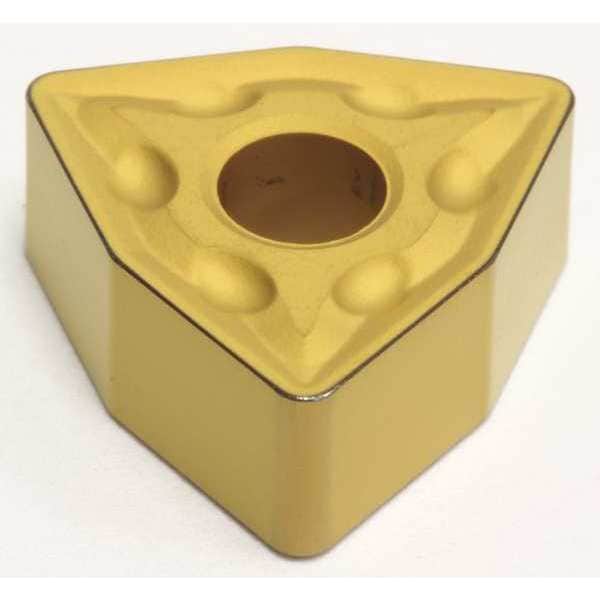

Turning Insert, Trigon, 4, WNMG, 3, Carbide

  • Mfr # WNMG433EMU-AC810P

  • Zoro # G6376006

product price:
$
13.15
/ea
Sold in multiples of 10 for $131.50

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
1/2 in
Insert Size
433
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WNMG433EMU-AC810P
Zoro #
G6376006
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
433
Corner Radius
3/64 in
Mounting Hole Dia.
0.203"
Nose Radius
0.0469"
Insert Thickness
0.1875"
Through Hole Inside Dia.
0.2031 in
Thickness
3/16 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Roughing
Rake
4 Degrees
ISO Number
WNMG080412NMU
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
Coating
Cermet
No. of Edges
3
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
ANSI Number
WNMG433EMU-AC810P
For Use With
Toolholders, Boring Bars
Mounting Style
Top and hole Clamping
Hardened (H) Compatibility
No
Included Angle
80 Degrees
Manufacturer Grade
AC810P
Features
Excellent Wear Resistance
Chip-Breaker Code
EMU
Coating Process
CVD
Primary Material Application ISO Code
P
Measurement System
Fractional Inch
Insert Holding Type
Straight Hole
Finish - Machining
Al203+TiCN
Shape
Trigon
Chip-Breaker Style
Double Sided
ANSI Code
WNMG433EMU
Cutting Application
Turning
Material - Machining
Carbide
Primary Material Application
Steel
Clearance Angle
0 Degrees
Material
Carbide

Description

Turning Insert, Chip-Breaker Code EMU, Inscribed Circle 1/2 in, Al203+TiCN

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
