Sumitomo

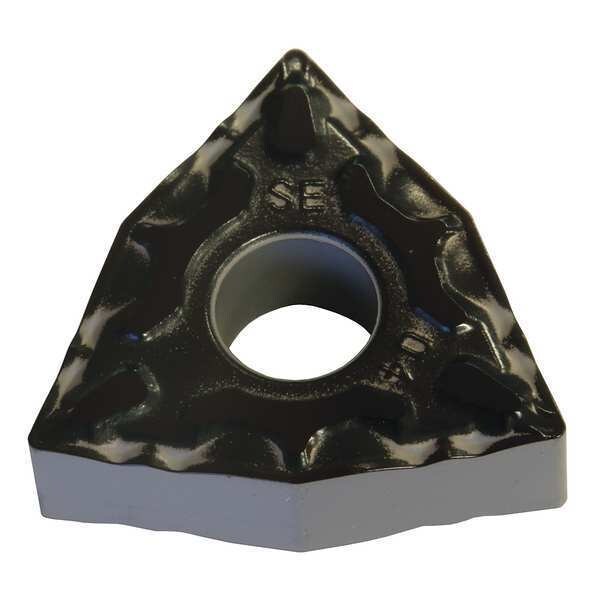

Turning Insert, Trigon, 4, WNMG, 3, Carbide

product price: $10.15
/ea
Sold in multiples of 10 for $101.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Shape Trigon
  • Insert Style WNMG
  • Inscribed Circle 4
  • Insert Size 433
  • Chip-Breaker Yes
See all product information

Product Information

Dimensions

Insert Size 433
Corner Radius 3
Mounting Hole Dia. 0.203"
Nose Radius 0.0469"
Through Hole Inside Dia. 0.2031 in

Details

Item Turning Insert
Insert Shape Trigon
Insert Style WNMG
Inscribed Circle 4
Chip-Breaker Yes
Grade AC8025P
Workpiece Compatibility Cast Iron (K), Stainless (M), Steel (P)
Insert Material Carbide
Insert Application Finishing
For Use With Toolholders, Boring Bars
Hardened (H) Compatibility No
Stainless (M) Compatibility Yes
Insert Thickness 0.1875"
Super Alloy (S) Compatibility No
ANSI Number WNMG433ESE-AC8025P
Non Ferrous (N) Compatibility No
Mounting Style Top and hole Clamping
Steel (P) Compatibility Yes
No. of Edges 3
ISO Number WNMG080412N-SE
Cutting Direction Neutral
Coating CVD
Rake 5 Degrees
Cast Iron (K) Compatibility Yes
Coating Process CVD
Measurement System Fractional Inch
Chip-Breaker Code ESE
Manufacturer Grade AC8025P
Primary Material Application ISO Code P25
Chip-Breaker Style Double Sided
Features Adhesion Resistant, Chipping Resistant
ANSI Code WNMG433ESE
Material - Machining Carbide
Included Angle 80 Degrees
Insert Holding Type Straight Hole
Shape Trigon
Thickness 3
Clearance Angle 0 Degrees
Finish - Machining Absotech Platinum
Cutting Application Turning
Primary Material Application Steel

Description

Turning Insert, Chip-Breaker Code ESE, Inscribed Circle 1/2 in, Absotech Platinum
