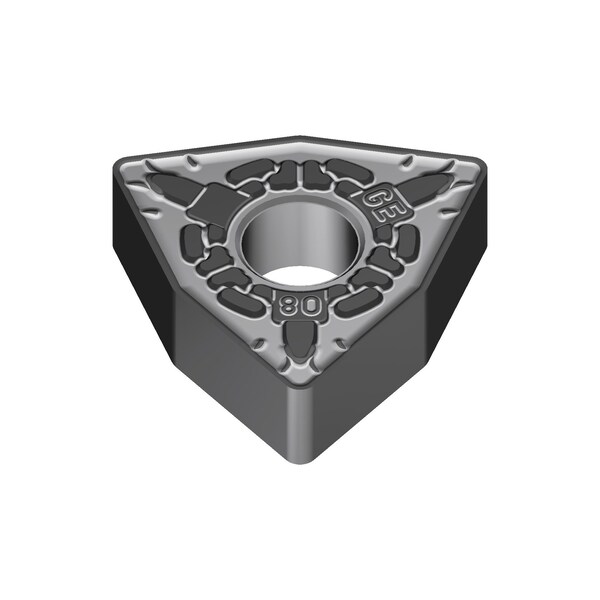

WNMG431EGE Grade AC8025P Carbide Turning Insert
Mfr # 19P7CEW
Zoro # G508978488
product price:Â
$
14.15
/ea
Sold in multiples of 10 for $141.50
Key Features
Insert Style
WNMG
Inscribed Circle
1/2 in
Insert Size
0.3425 in
Chip-Breaker
Yes
Grade
AC8025P
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 19P7CEW
- Zoro #
- G508978488
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Insert Size
- 0.3425 in
- Nose Radius
- 0.0157 in
- Mounting Hole Dia.
- 5.16 mm
- Insert Thickness
- 0.1874 in
Details
- Item
- Turning Insert
- Insert Style
- WNMG
- Inscribed Circle
- 1/2 in
- Chip-Breaker
- Yes
- Grade
- AC8025P
- Insert Material
- Carbide
- Rake
- Negative
- ISO Number
- WNMG080404N-GE
- Workpiece Compatibility
- Steel
- Mounting Style
- Pin and Clamp
- Material Application ISO Code
- P25, P30, P20
- Series
- AC8000P
- Relief Angle
- 0 Degrees
- Tolerance Class
- M
- ANSI Number
- WNMG431EGE-AC8025P
- Coating
- Absotech
- Coating Process
- CVD
- Included Angle
- 80 Degrees
