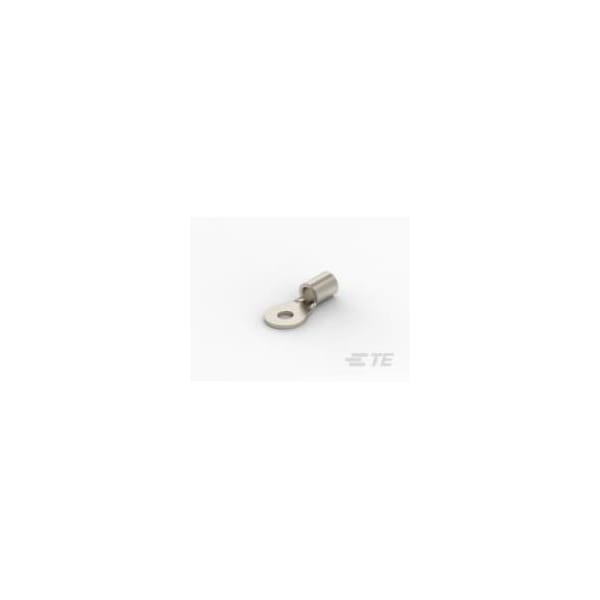

Ring Terminal, #6 Stud Size, 10 AWG, Bare Insulated
Mfr # 323060
Zoro # G005900227
product price:Â
$
1.15
/ea
Sold in multiples of 75 for $86.25
Key Features
Terminal Shape
Standard Ring Tongue
Maximum Wire Size
10 AWG
Insulation Coverage
None
Insulation Type
Bare
Stud Size
#6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 323060
- Zoro #
- G005900227
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 10 AWG
- Stud Size
- #6
- Overall Length
- 0.765 in
- Barrel Inside Dia.
- 0.129 in
- Minimum Wire Size
- 12 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Coverage
- None
- Insulation Type
- Bare
- Maximum Operating Temperature
- 650 Degrees F
- Wire Type
- Solid or Stranded, Regular Wire
- Seam
- Closed Barrel
- Terminal Orientation
- Straight
- Contact Plating Material
- Nickel, Copper
- Minimum Operating Temperature
- 0 Degrees F
- Standards
- CSA Approved, MIL Spec, UL Listed
- Contact Material
- Copper
- Termination Style
- Crimp
- Insulation Color
- Bare
